Motorola Signature – 16 GB RAM / 512 GB –

 Technical Specifications & Device Overview

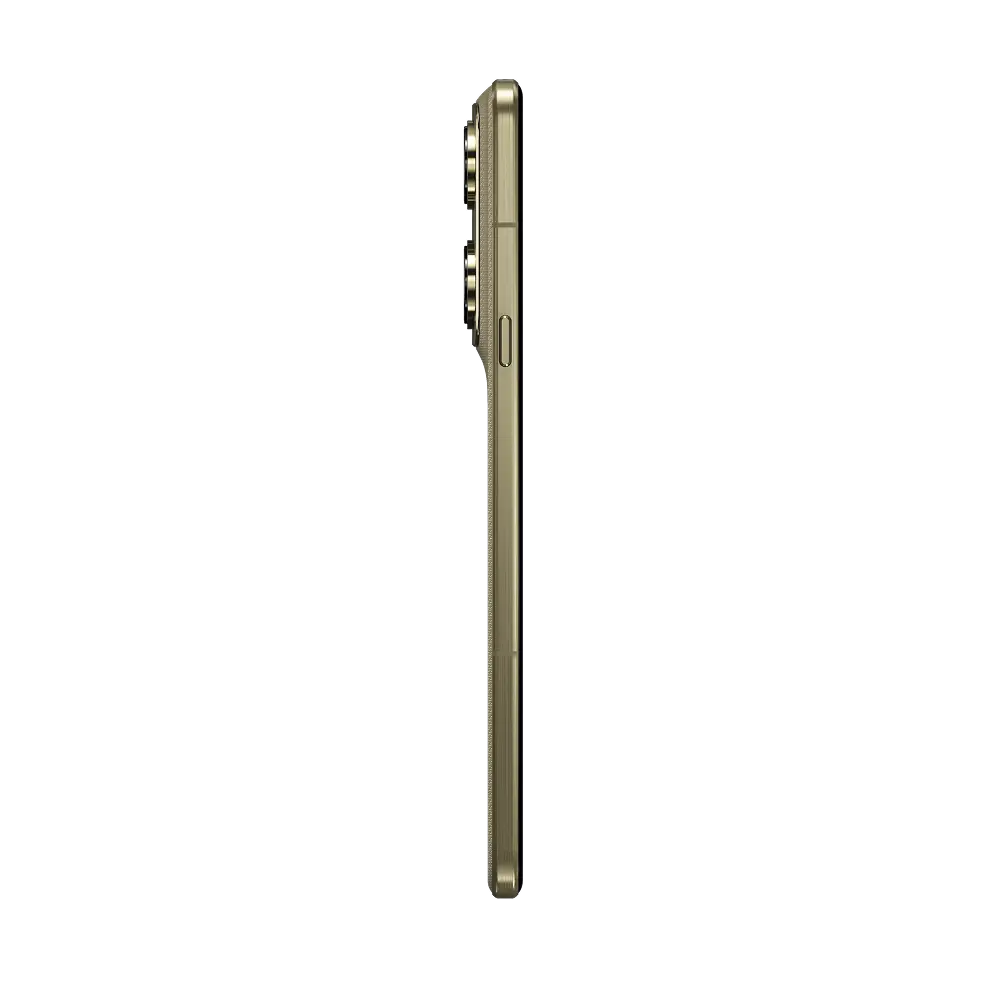

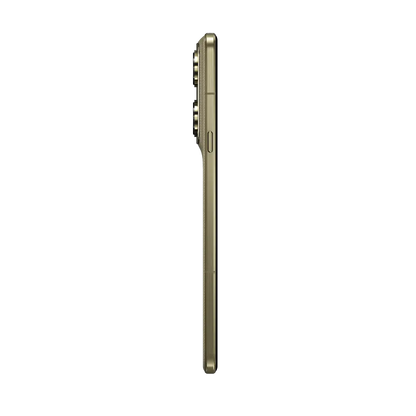

1. Build & Construction

• Thickness: 6.99 mm
• Weight: 186 g
• Frame: Aluminum alloy
• Back cover: Textured fabric-style surface (linen/twill structure)
• Front glass: Corning Gorilla Glass Victus 2
• Protection ratings: IP68 (dust/water) + IP69 (high-pressure water)
• Durability standard: MIL-STD-810H

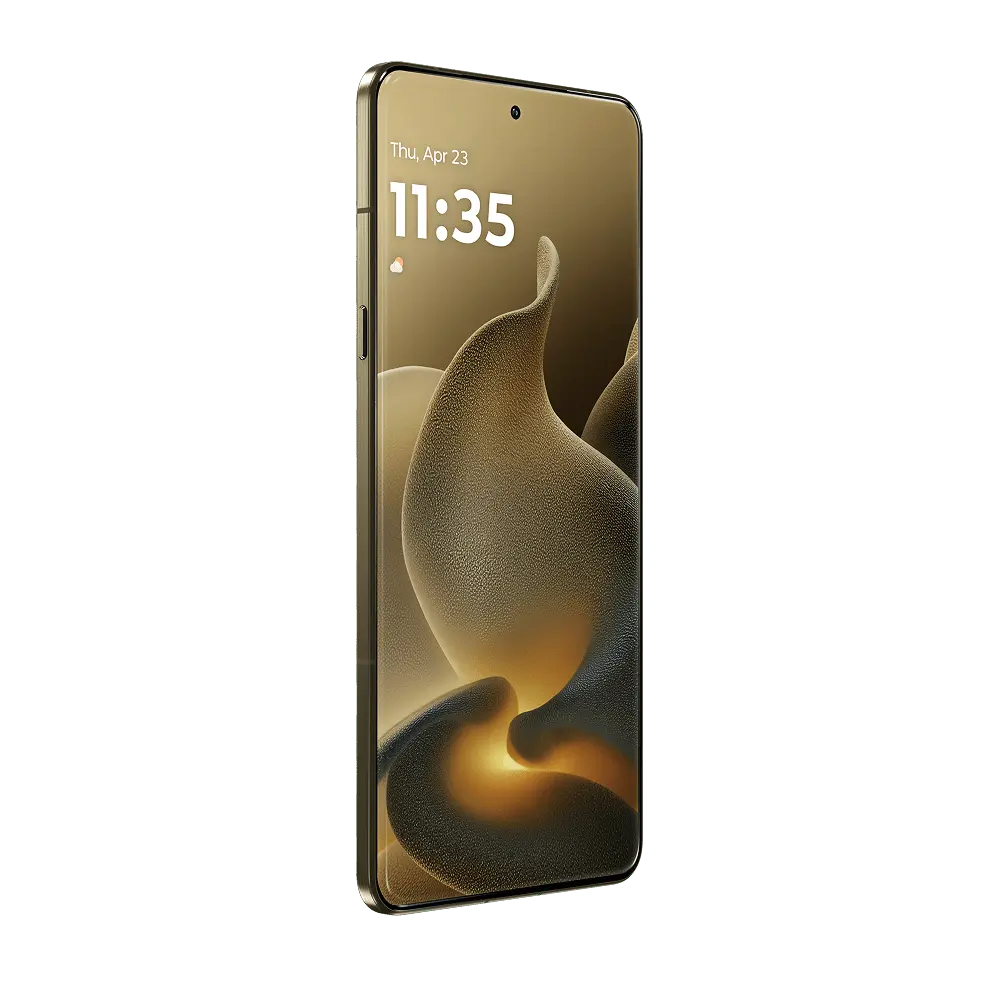

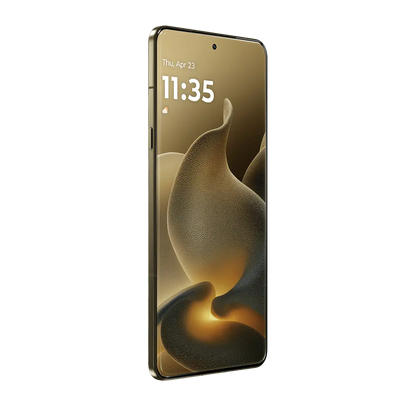

2. Display

• Type: 6.8" LTPO AMOLED
• Adaptive refresh rate: 1–165 Hz
• Resolution: FHD+ (20:9)
• Color space: DCI-P3, 10-bit
• HDR standards: HDR10+, Dolby Vision
• Peak brightness: 6200 nits
• Touch sampling rate: High precision (> 360 Hz)
• PWM dimming: High-frequency flicker reduction

3. Processor & Performance

• SoC: Qualcomm Snapdragon 8 Gen 5
• Manufacturing process: 3 nm
• CPU configuration:
  • 1× Prime core
  • 5× Performance cores
  • 2× Efficiency cores
• GPU: Next-generation Adreno
• AI engine: Qualcomm Hexagon NPU (new generation)
• Modem: Snapdragon X75 (5G Sub‑6 + mmWave)
• RAM: 16 GB LPDDR5X
• Storage: 512 GB UFS 4.1

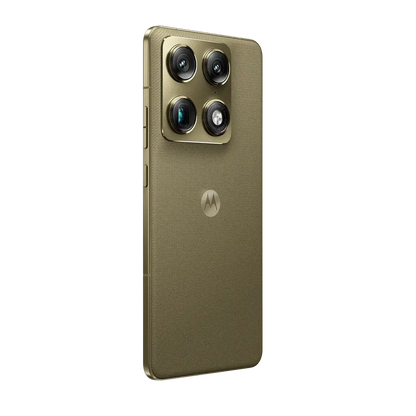

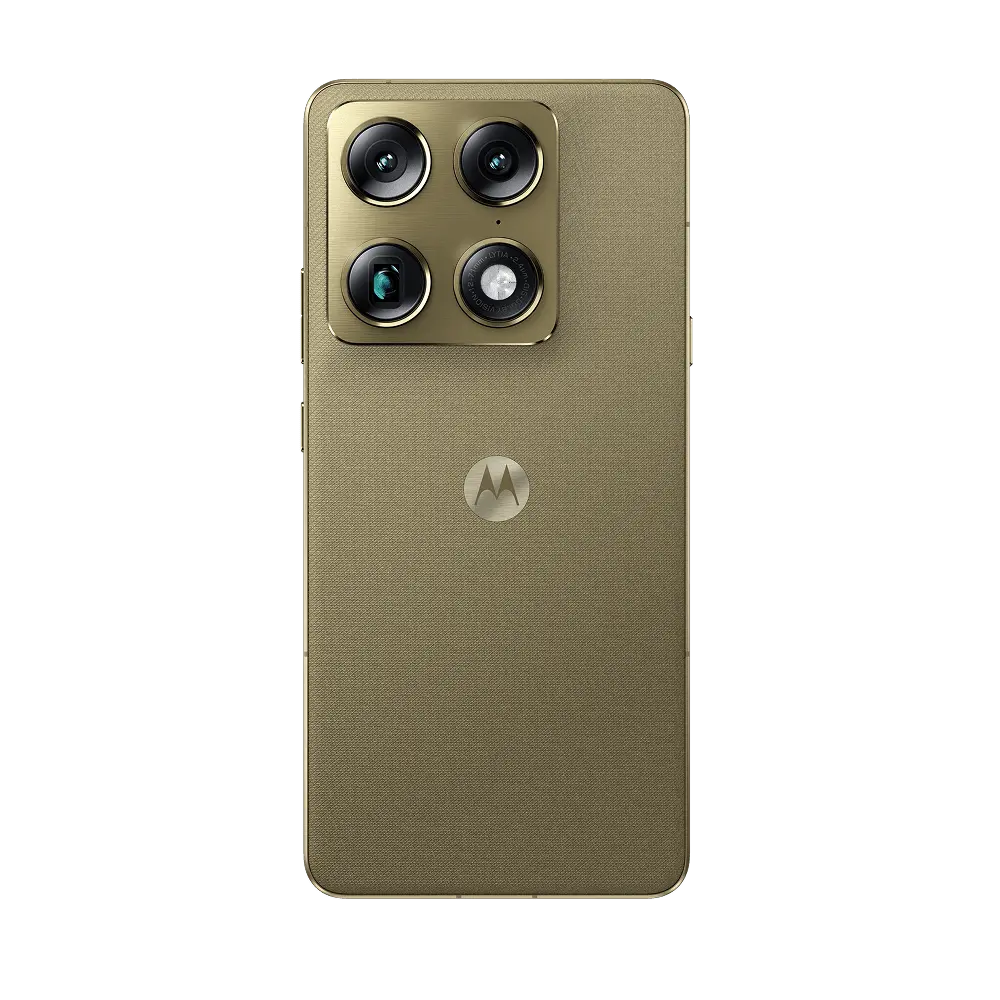

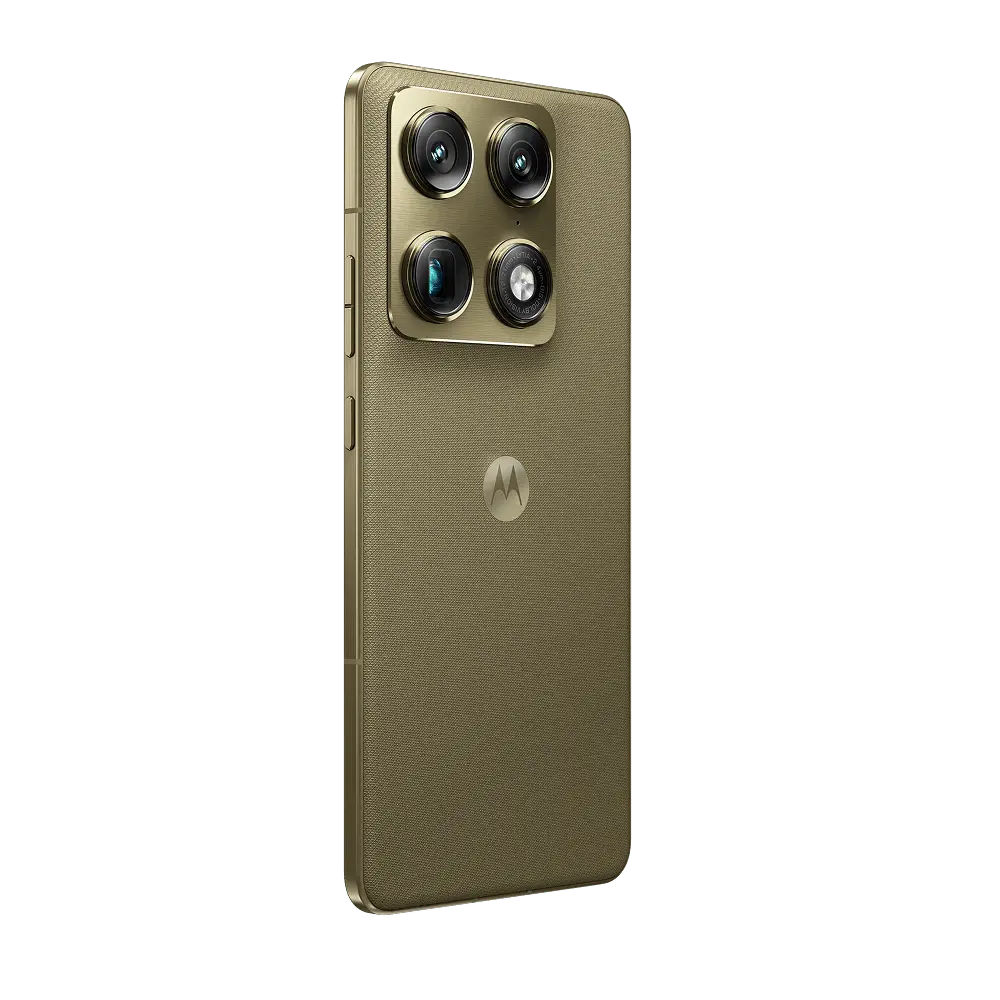

4. Camera System (Rear)

Main Camera

• 50 MP Sony LYTIA 828
• Sensor size: 1/1.28"
• Pixel size: 1.22 µm
• OIS: Yes
• Autofocus: All‑Pixel PDAF
• Video: 8K@30fps, 4K@120fps, Dolby Vision

Periscope Telephoto

• 50 MP
• 3× optical zoom
• OIS
• Hybrid zoom up to 100×

Ultra‑Wide

• 50 MP
• 114° field of view
• Integrated macro mode

Front Camera

• 50 MP
• Autofocus
• 4K video recording

5. Battery & Power Management

• Capacity: 5200 mAh
• Wired charging: 90 W TurboPower
• Wireless charging: 50 W
• Reverse wireless charging: Supported
• Charging time: approx. 85% in ~30 minutes

6. Connectivity

• Mobile networks: 5G Sub‑6, 5G mmWave (model dependent)
• Wi‑Fi: Wi‑Fi 7
• Bluetooth: 5.4
• NFC: Yes
• UWB: Yes
• GPS: Dual‑band GNSS
• USB: USB‑C 3.2 Gen 2 with DisplayPort 1.4
• Motorola Ready For: Supported

7. Audio

• Stereo speakers
• Dolby Atmos
• Snapdragon Sound
• Hi‑Res Audio
• Triple microphone system with noise reduction

8. Software & Updates

• Operating system: Android 16
• Update policy:
  • 7 years OS updates
  • 7 years security updates
• Motorola MyUX
• AI features for camera, battery, scene detection, and performance optimization

9. Sensors

• In‑display fingerprint sensor
• Proximity sensor
• Ambient light sensor
• Gyroscope
• Accelerometer
• Electronic compass
• Barometer

10. Available Colors

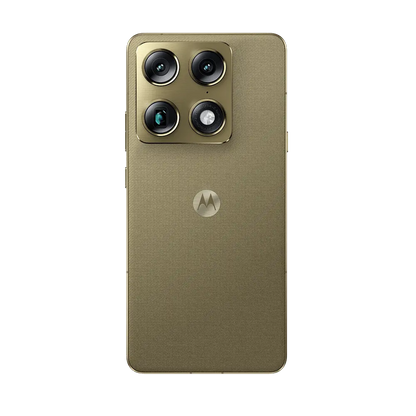

• Pantone Martini Olive

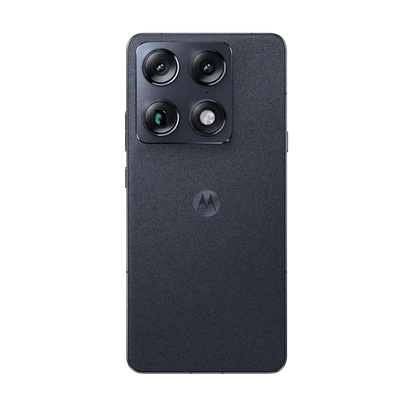

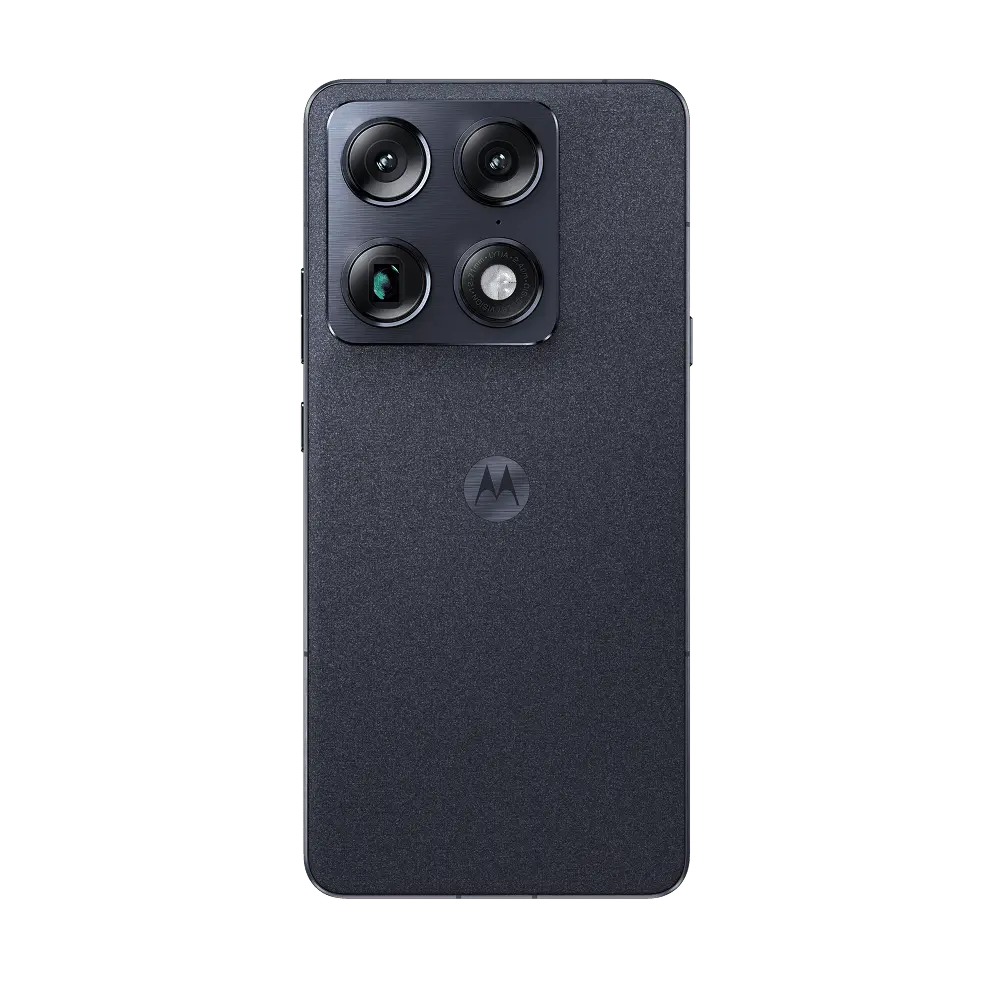

• Pantone Carbon

11. Included in the Box

• Motorola Signature
• 90 W TurboPower charger
• USB‑C cable
• SIM tool
• Quick start guide
