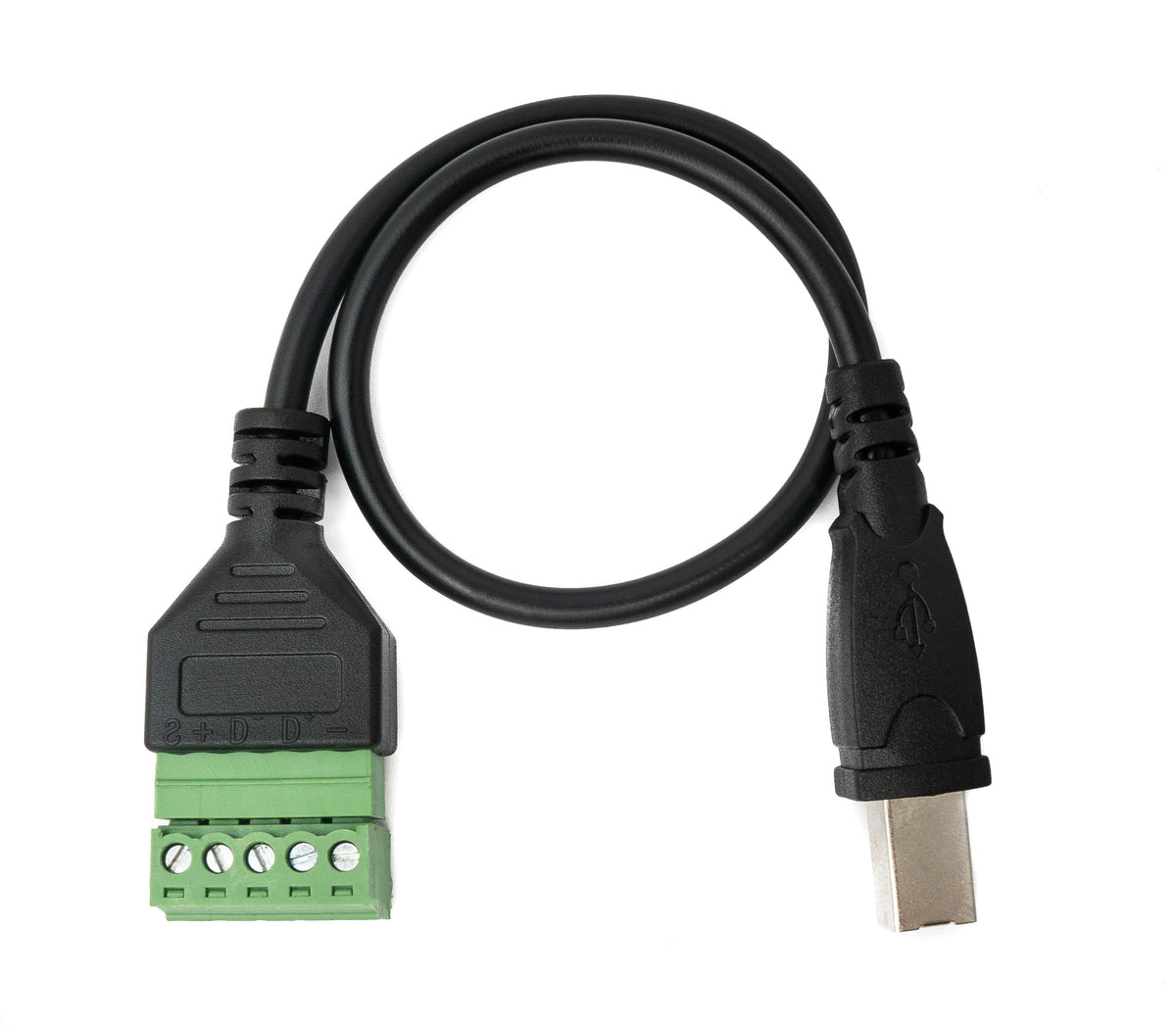

SYSTEM-S USB 2.0 cable 30cm type B plug to 5-pin PCB connector black

SYSTEM-S USB 2.0 cable 30 cm Type B male to 5-pin PCB male in black

The SYSTEM-S USB 2.0 cable provides a reliable connection between USB-B ports and a 5-pin PCB connector, ideal for terminals and data transfers. Here are the details:

Functionality:

• Connects a USB 2.0 Type B male connector to a 5-pin PCB connector (MC 1.5/ 5-ST-3.81), ideal for various data transfer and connection applications.

Transfer rate and performance:

• Hi-speed transfer rate of up to 480 Mbps.
• Nominal voltage: 5 V.
• Maximum current: 2.4 A.

Color:

• Black: An elegant and unobtrusive design that blends well into various installations.

Cable length and dimensions:

• Cable length: 30 cm.
• Dimensions of the type B plug: 5.3 x 1.3 x 1.1 cm (L x W x H).
• Dimensions of the conductor plug: 4.6 x 2.1 x 1.2 cm (L x W x H).

Weight:

• Product weight: 21 g.
• Package weight: 2 g (poly bag).

Model number:

• SYSTEM-S Model Number: 78988729.

This cable is ideal for applications where a compact and efficient connection between USB-B ports and printed circuit boards is required without compromising the quality of data transmission.

PCB connectors (MC 1.5/ 5-ST-3.81) for terminals/data transmission

Color: Black

Hi-Speed: 480 Mbit/s transfer rate - Nominal voltage: 5 V - Maximum current: 2.4 A

Cable length: Dimensions B-plug: 5.3 x 1.3 x 1.1 cm (L x W x H) - Dimensions conductor plug: 4.6 x 2.1 x 1.2 cm (L x W x H) - Product weight: 21 g - Packaging weight: 2 g (poly bag)

System-S Model Number: 78988729
