SYSTEM-S NVME M-key M.2 NGFF adapter to USB 3.1 Type C & 2.0 Type A connector for SATA SSD

Connects SATA hard drives / motherboards with SAS- SFF 8482 motherboards / hard drives (SATA connection required otherwise SAS chipset)

Color: Black

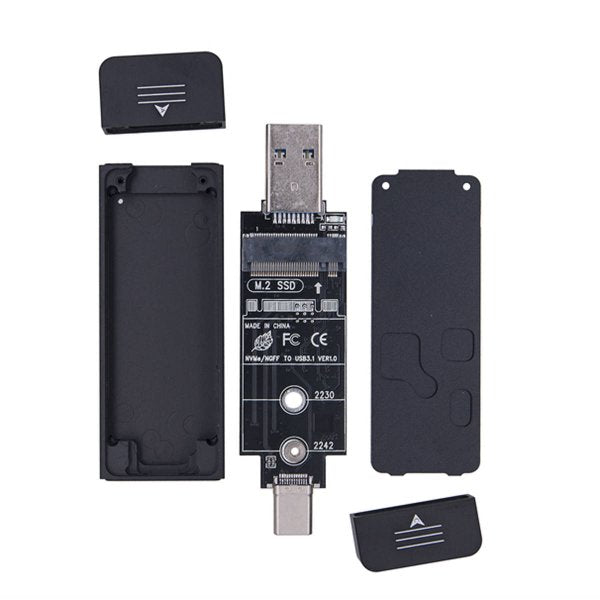

Scope of delivery: adapter, case, mounting accessories, adhesive strips, screwdriver

Dimensions: 9.3 x 2.6 x 0.9 cm (L x W x H) - Product weight: 42 g - Packaging weight: 30 g (poly bag + plastic box)

The item includes a PCBA (RTL9210B chipset) and a housing. (USB Type-A and Type-C connectors included.)

The RTL9210B chipset is a USB bridge that combines a USB device with both a PCIe controller and a SATA controller. It can automatically switch between USB-to-PCIe and USB-to-SATA modes via the PEDET interface of the M.2 mechanism.

In USB-to-PCIe mode, the RTL9210B supports PCIe Gen3 x2. It offers PCIe bandwidth of up to 10 Gbps. The PCIe host supports NVMe Express.

In USB-to-SATA mode, the RTL9210B supports SATA hosts at Gen3 speeds. For SATA, it offers a bandwidth of up to 6 Gbps.

It supports dynamic switching power state with NVMe/SATA/USB power management for power saving mode.

Suitable for 2230/2242mm NGFF/NVME M.2 SSD (the NGFF SSD is not included)
