System-S Micro USB 2.0 Cable 30 cm Right Angled

System-S Micro USB 2.0 Cable 30 cm Right Angled

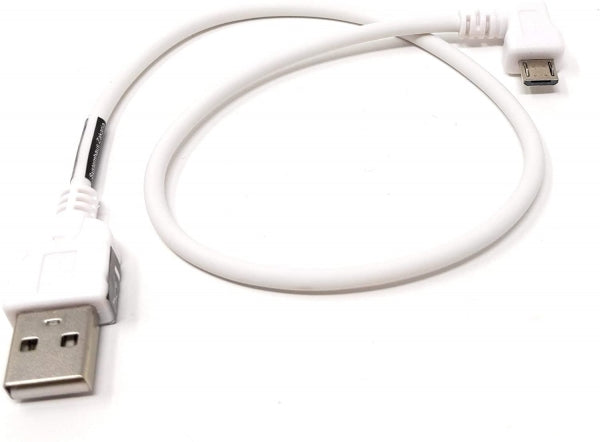

The System-S Micro USB 2.0 cable is ideal for applications requiring a right angle. It enables a compact connection between USB A (male) and Micro USB 2.0 (male) devices.

Characteristics:

• Connections:

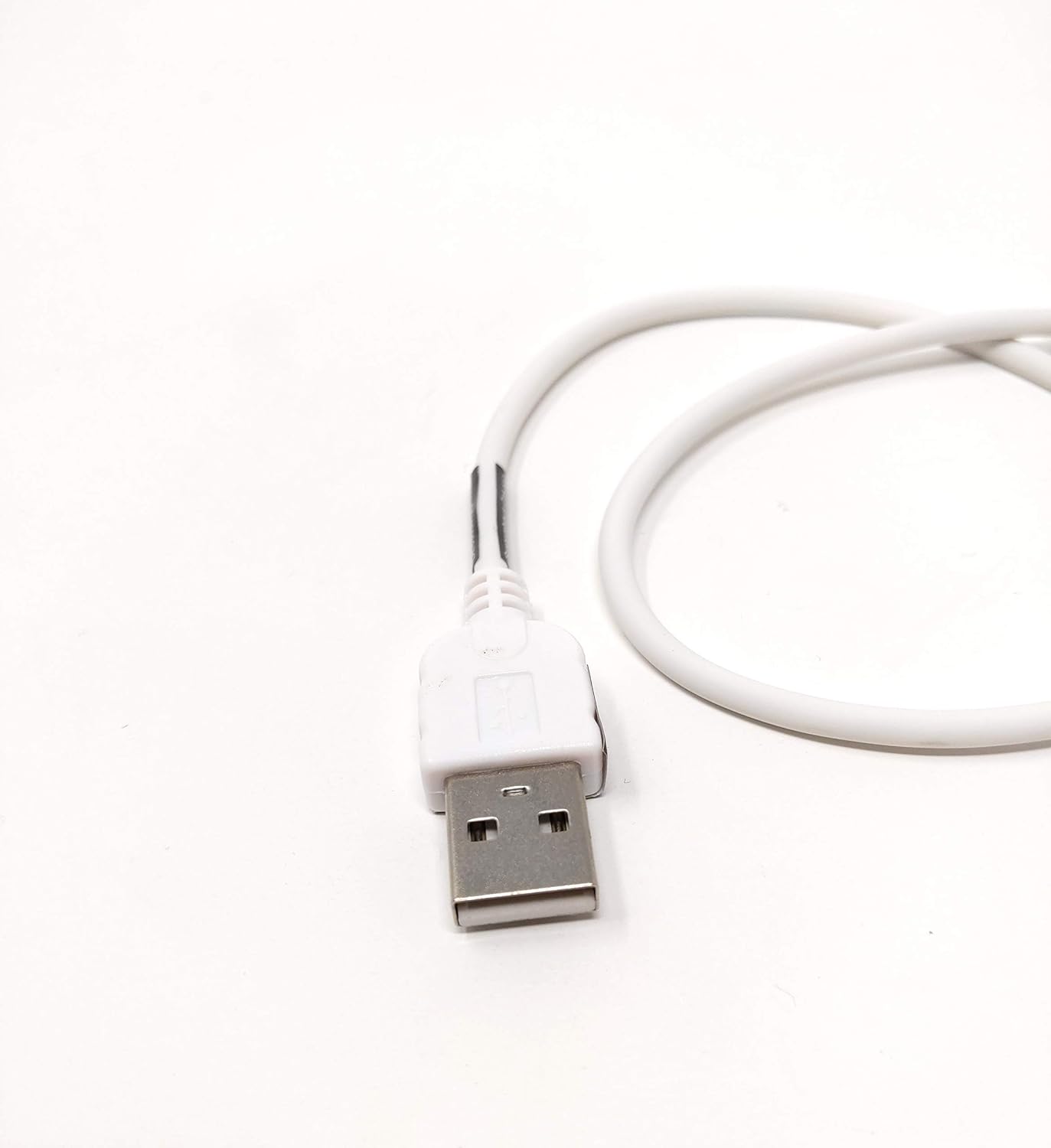

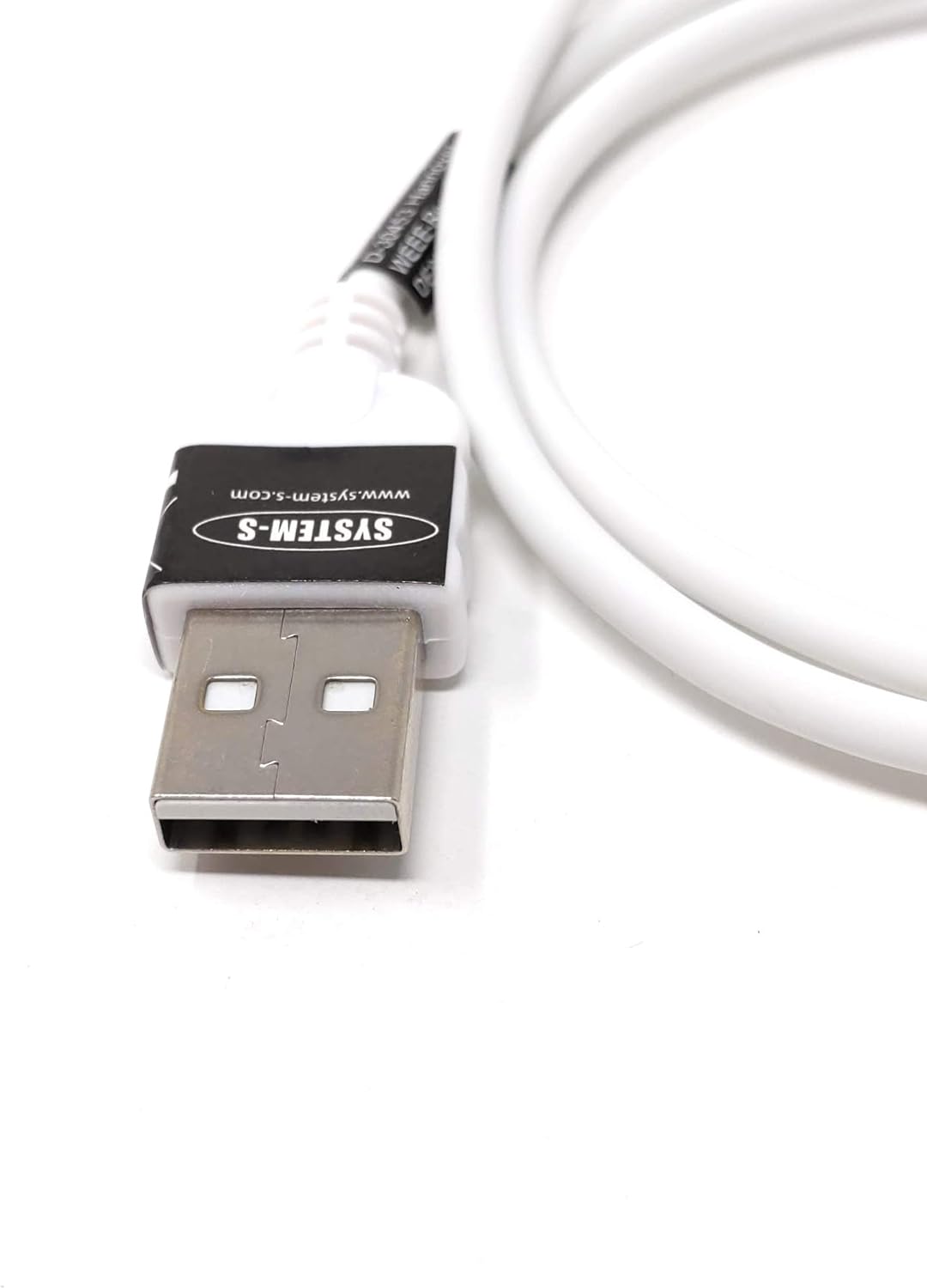

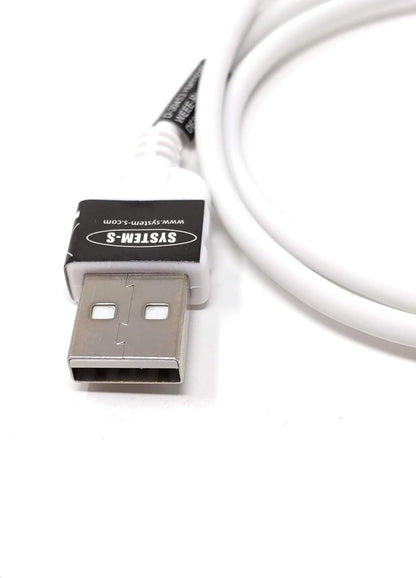

  • USB A (male) to USB 2.0 Micro B (male).

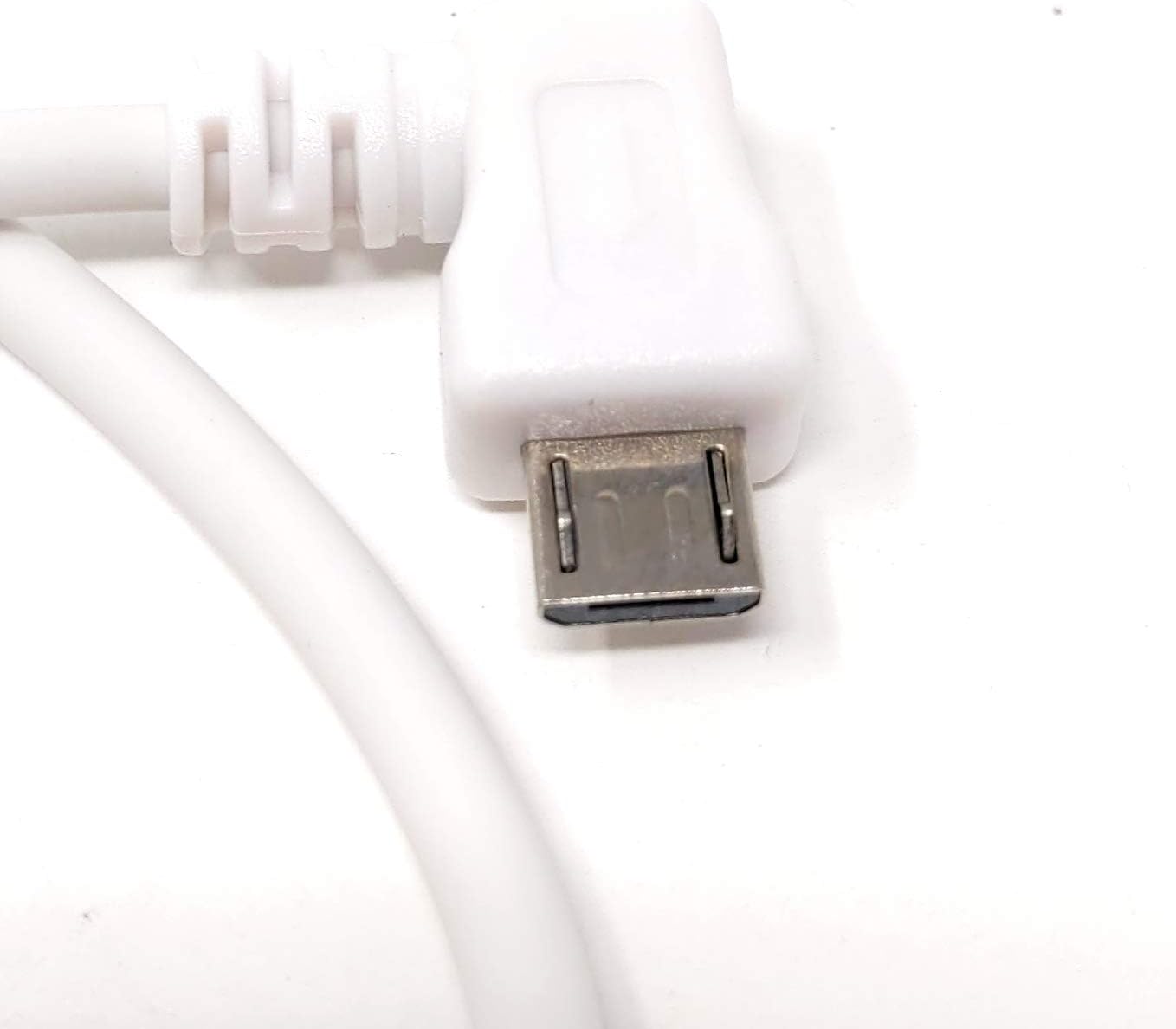

  • The Micro USB 2.0 connector has a right angle: when viewed from the front, the wider part of the Micro USB connector is at the bottom and the cable runs to the right.

• Cable length: 30 cm. Ideal for situations where a short connection is needed without creating cable clutter.

• Speed: Supports USB 2.0 with a transfer speed of up to 480 Mbps, ideal for fast data transfers and reliable performance.

• Compact dimensions:

  • Micro USB connector housing dimensions: W: 16 mm, H: 7 mm, L: 27 mm, insertion depth 6 mm (standard).
  • USB A connector housing dimensions: W: 16 mm, H: 7 mm, L: 27 mm, insertion depth 6 mm (standard).

This cable is particularly suitable for applications where space is limited or a fixed, right-angled connection is required. It offers high transmission speeds and is robustly constructed for reliable performance.

USB A (male) to USB 2.0 Micro B (male)

Right angle of the Micro USB 2.0 connector: when viewed from the front, the wider part of the Micro USB connector is at the bottom, and the cable runs to the right.

Cable length 30cm Micro USB connector housing dimensions: W:16mm H:7mm L:27mm Insertion depth 6mm (standard)

Speed ​​480 Mbit/s (USB 2.0)

Scope of delivery: USB cable 30cm type Micro (male) angled to type A (male).
