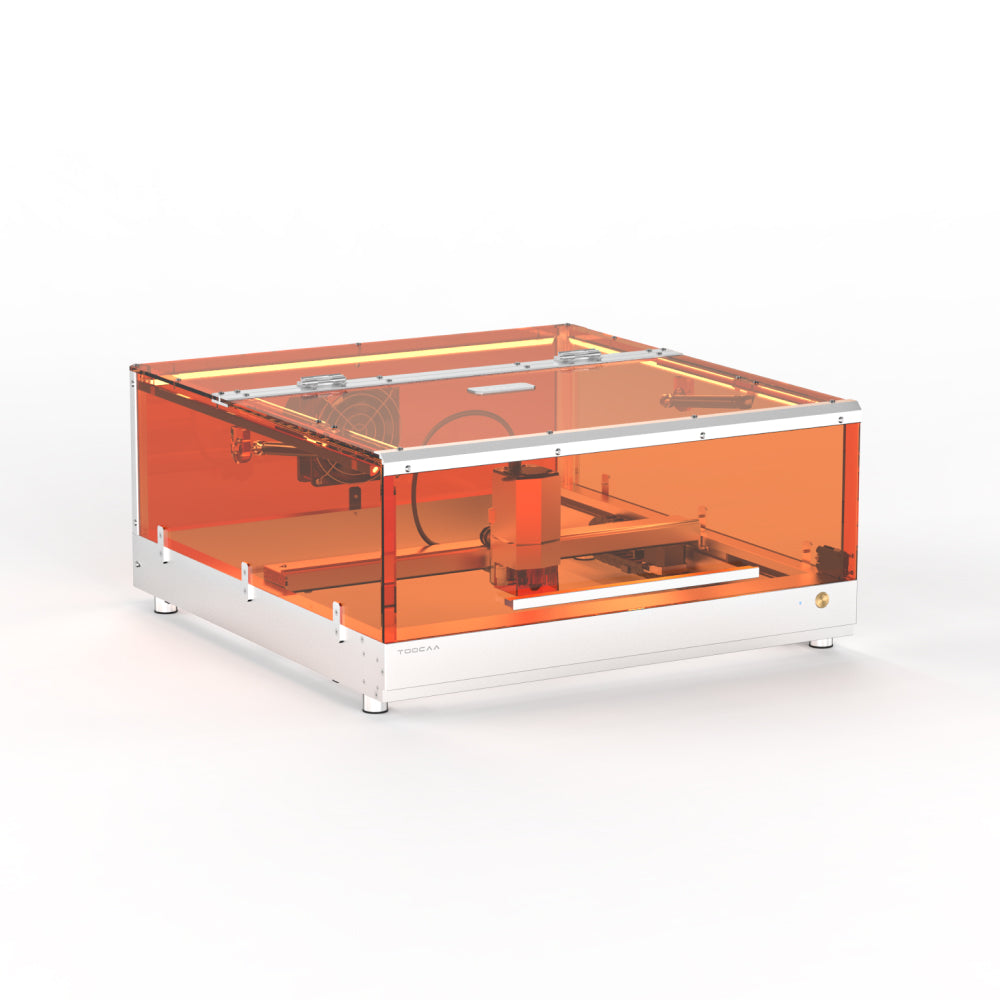

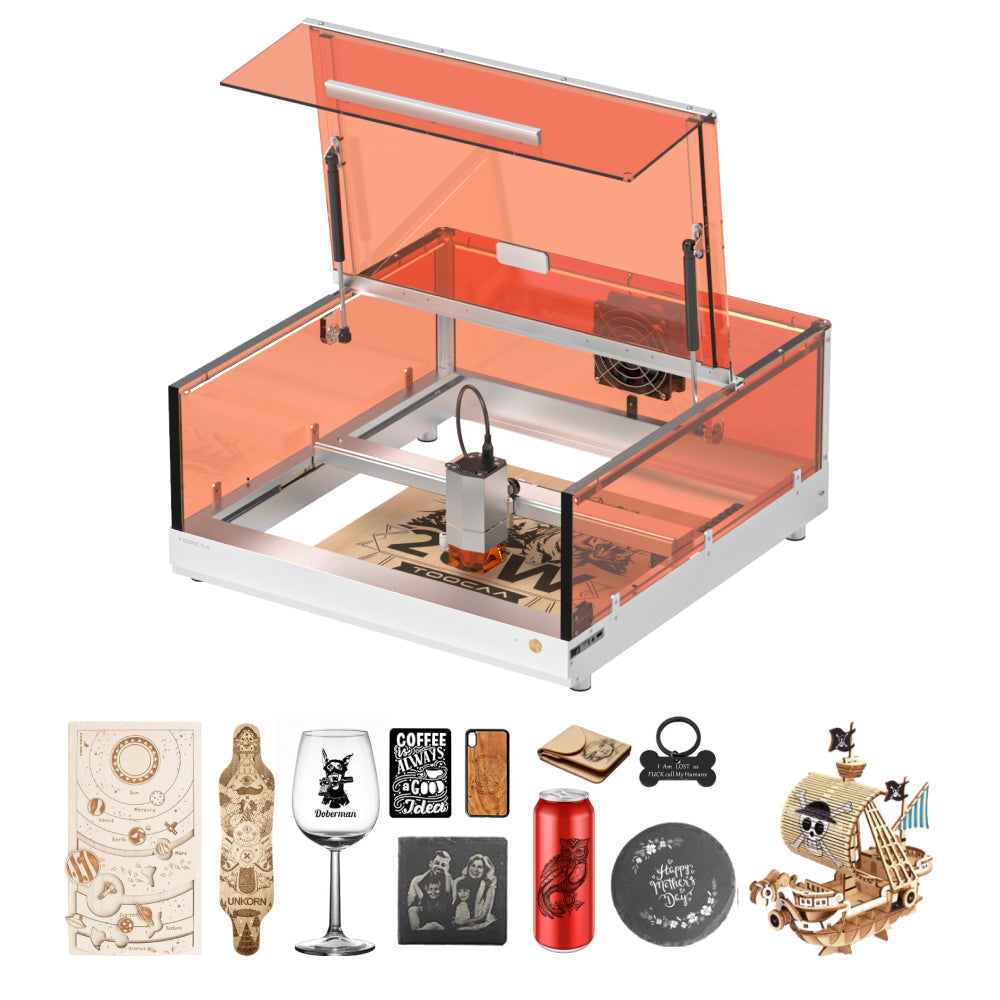

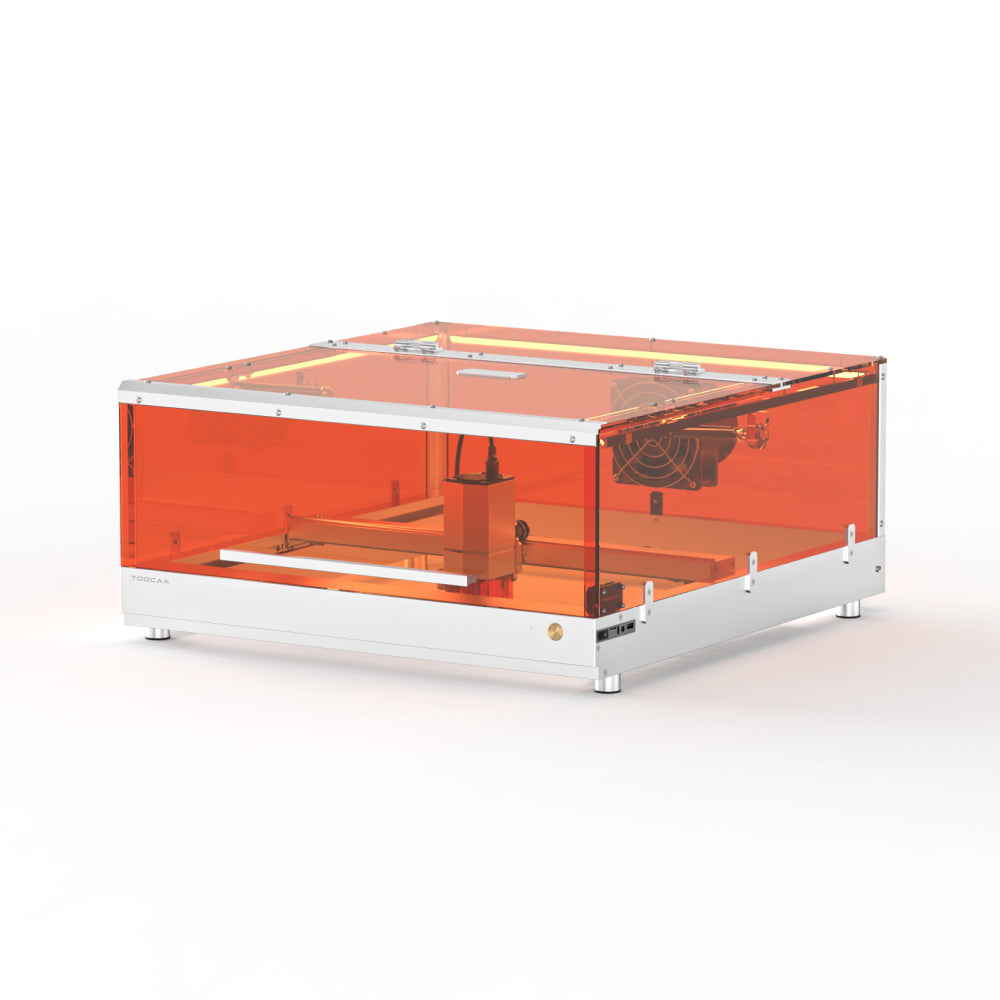

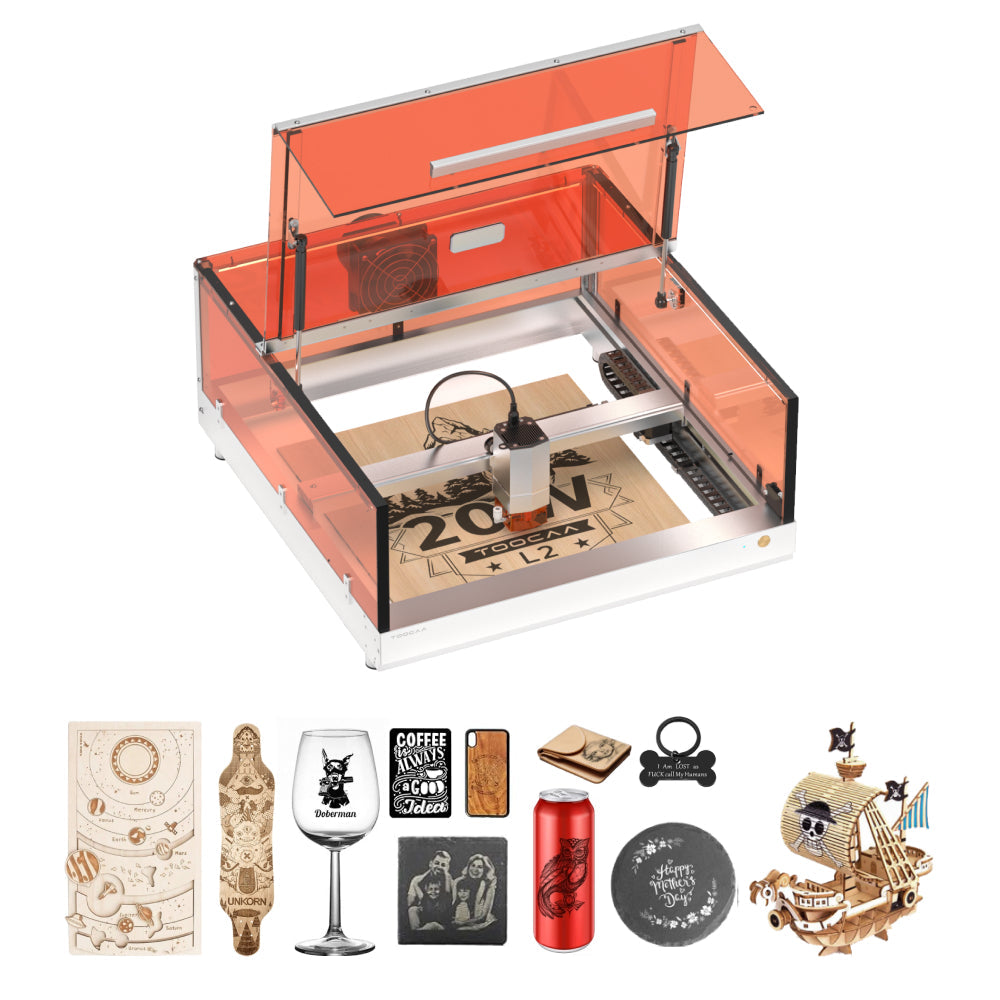

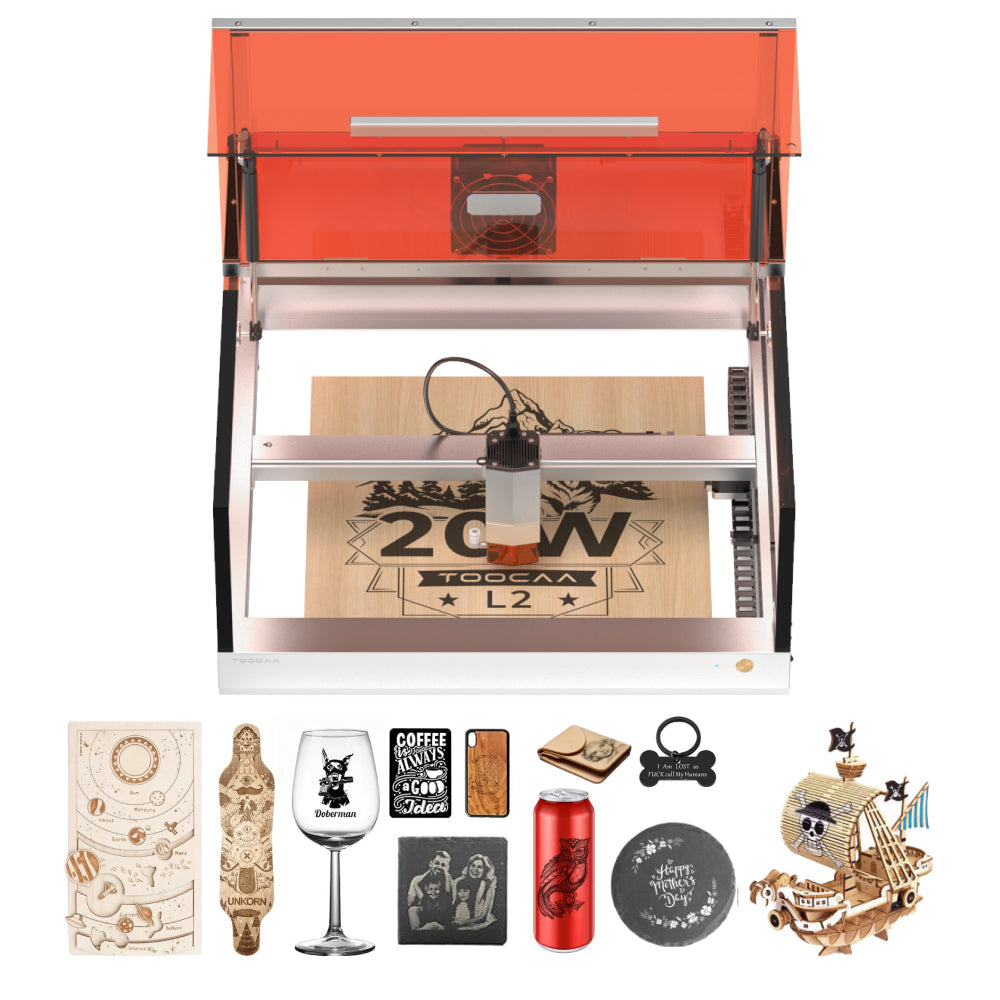

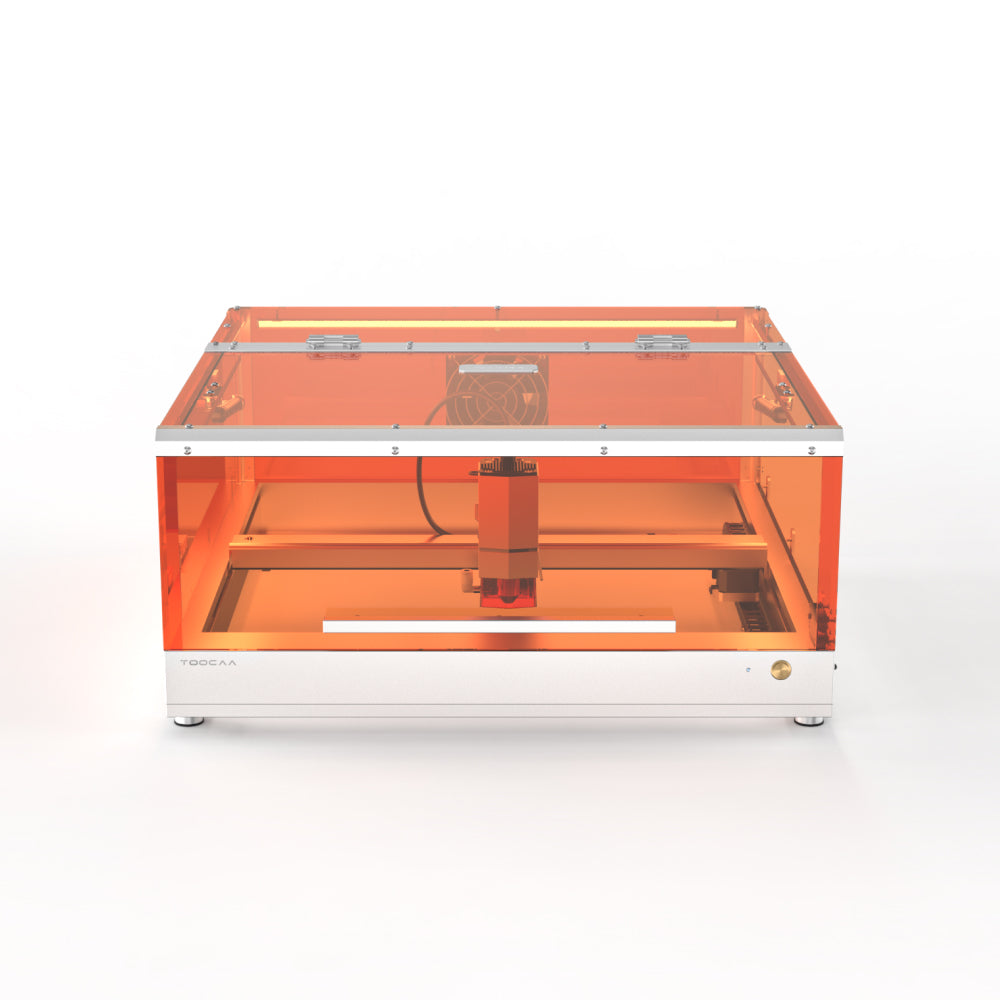

TOOCAA L2 Desktop Laser Engraver & Cutter

TOOCAA L2 Desktop Laser Engraver & Cutter

€1.103,95
€920,00 €1.103,95
Sale Sold out
Taxes included.
variant

TOOCAA L2 Laser Engraver & Cutter

Powerful desktop laser cutter for creative projects, professional applications and precise engraving work

Product highlights

  • Available with 10 W, 20 W or 40 W diode laser

  • Work surface: 415 × 395 mm – suitable for medium to large workpieces

  • Closed housing with automatic shutdown when opened

  • High precision: engraving speed up to 400 mm/s, positioning accuracy 0.01 mm

  • Tool-free laser module change

  • Compatible with LightBurn, LaserGRBL and TOOCAA Studio

  • Expandable with accessories such as Air Assist, smoke extractor, camera or rotary module

  • Comprehensive safety features: flame sensor, tilt protection, emergency stop, USB key

Overview of available laser power

Laser power Spot size Maximum cutting thickness (Basswood)
10 W 0.08 × 0.18 mm up to 6 mm
20 W 0.15 × 0.27 mm up to 10 mm
40 W 0.15 × 0.27 mm up to 15 mm

Technical data

feature specification
Work surface 415 × 395 mm
Device dimensions 645 × 617 × 306 mm
Weight approx. 17 kg (net), 19 kg (gross)
Voltage range 100–240 V, 50–60 Hz
Control/Software LightBurn, LaserGRBL, TOOCAA Studio
Connections USB-C, microSD
Safety class Laser class 1
Housing material Acrylic and aluminum

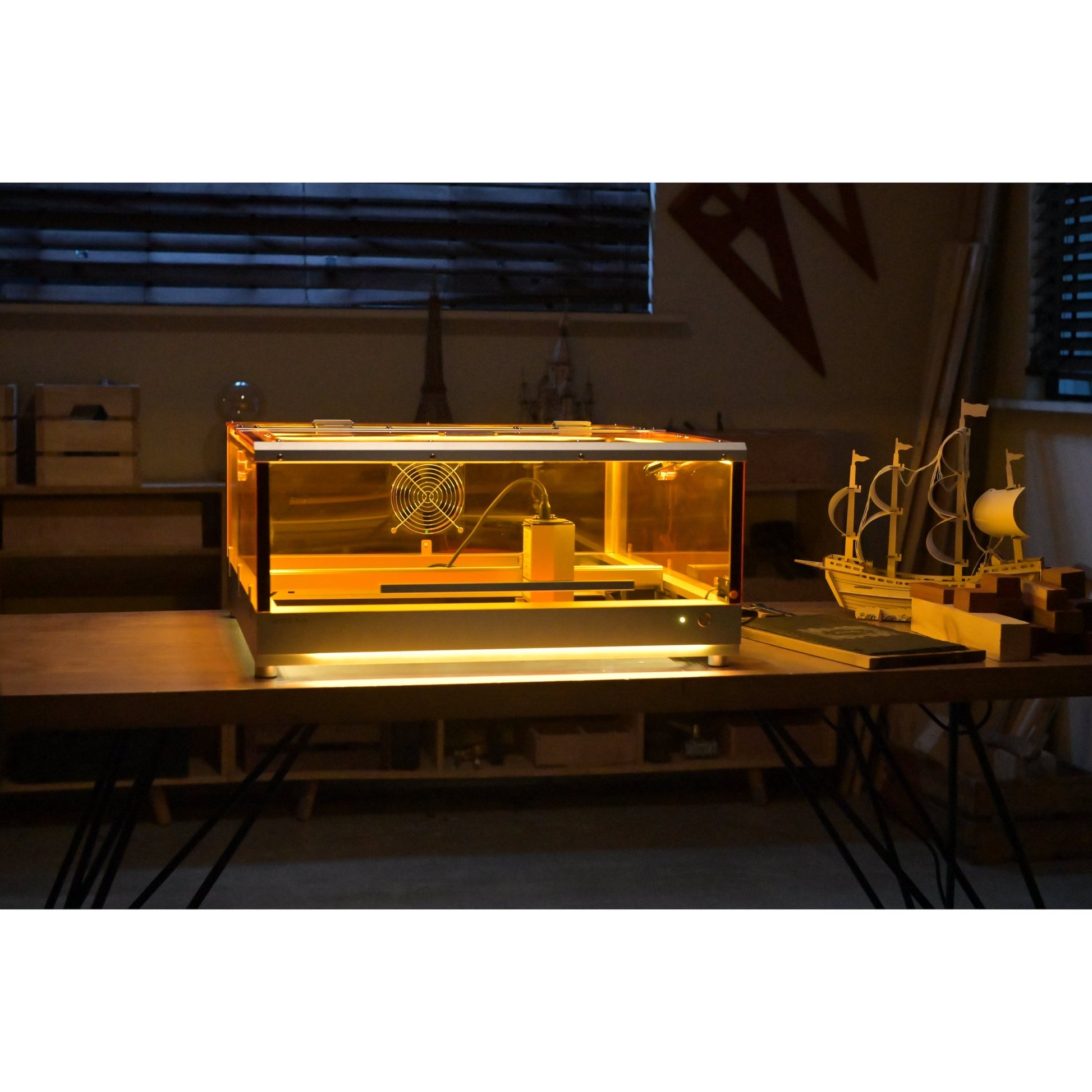

lighting LED interior lighting and RGB ambient lighting

Security features

  • Completely enclosed design to reduce laser light and smoke

  • Automatic shutdown when the cover is opened

  • Integrated flame sensor and tilt protection with emergency shutdown

  • Emergency stop button and USB security key for access control

Supported materials

material engraving Cut
Wood Yes Yes
Acrylic (not transparent) Yes Yes
Leather, textiles Yes Yes
cardboard, paper Yes Yes
Stainless steel (coated) Yes No
aluminum (anodized) Yes No
Ceramics, glass, stone Yes No

Operation & Software

  • Supports Windows and macOS

  • Compatible with LightBurn (professional software) and LaserGRBL (free)

  • Offline operation possible via SD card

  • Optional: Integration of a camera for position detection

Scope of delivery (depending on the package)

  • TOOCAA L2 with selected laser module (10 W / 20 W / 40 W)

  • Accessory set including focus helper, tools, USB stick

  • User manual and software link

  • Optionally available: Air Assist, camera, rotation module, filter unit

Target groups

  • Creative users, makers and hobbyists

  • Small businesses and start-ups in product personalization

  • Schools and educational institutions with a focus on digital manufacturing

  • Model making, architecture, product design
