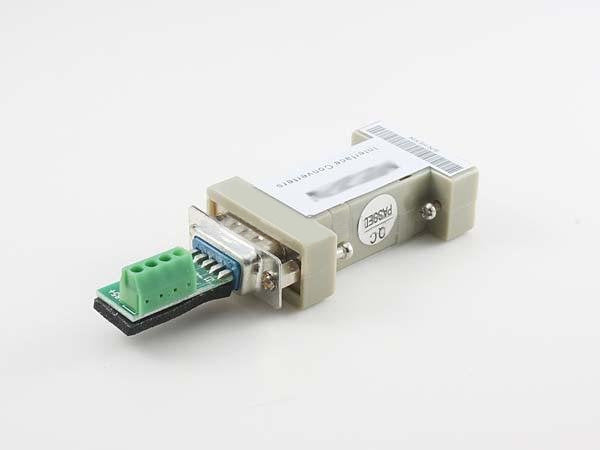

System-S RS232 to RS485 Serial Data Converter Adapter Data Communication Date Converter

The System-S RS232 to RS485 Serial Data Converter Adapter provides a convenient solution for data communication between devices using RS-232 and RS-485 standards. Here are some key features and specifications:

• Power supply: The converter is powered via the port, so no additional power source is required.
• Compatibility: It is compatible with RS-232C and RS-485 standards according to EIA/TIA standards.
• Working mode: The converter supports asynchronous half-duplex operation mode.
• Transmission media: It can be used with various transmission media such as single wire, double wire, UTP or protective line.
• Transfer speed: Supported transmission speeds range from 300 to 115200 bps.
• Tension: The voltage supply is 5V.
• Transmission distance: The maximum transmission distance is 5 meters at the RS-232 end and 1200 meters at the RS-485 port.
• Work area: The converter can be operated in a temperature range of -10 to 85 degrees Celsius and at a relative humidity of 0% to 95%.
• Supported signals: RS-232 supports the TXD, RXD, RTS, CTS, DTR, DSR, DCD and GND signals, while RS-485 uses the Date+, Date-, and GND signals.

Overall, the System-S RS232 to RS485 Serial Data Converter Adapter offers a reliable solution for data communication between RS-232 and RS-485 devices in various applications.

System-S RS232 to RS485 Serial Data Converter Adapter Data Communication Date Converter

Characteristics:
- Port powered, no additional power source required
- Compatible with RS-232C, RS-485 standard EIA / TIA
- Working equipment: Asynchronous half-duplex
- Transmission media : Pus, double wire or UTP or protective line
- Transmission speed : 300 ~ 115-21bds
- Voltage: 5V
- Transmission distance: 5 meters (RS-232 end), 1200 meters (RS-485 port)
- Working range: -10 ~ 85 Celsius degree temperature, 0% ~ 95% relative humidity
- Signals:
* RS-232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, GND;
* RS-485: Date + , Date- , GND

Pin assignment table:
* DB9 socket (RS232C)
- 1 DCD
- 2 RXD
- 3 TXD
- 4 DTR
- 5 GND
- 6 DSR
- 7 RTS
- 8 CTS

* RS485
- 1 Date -
- 2 Date +
- 3 blanks
- 4 blanks
- 5 GND
- 6 + 12V

Scope of delivery: RS232 to RS485 serial data converter
