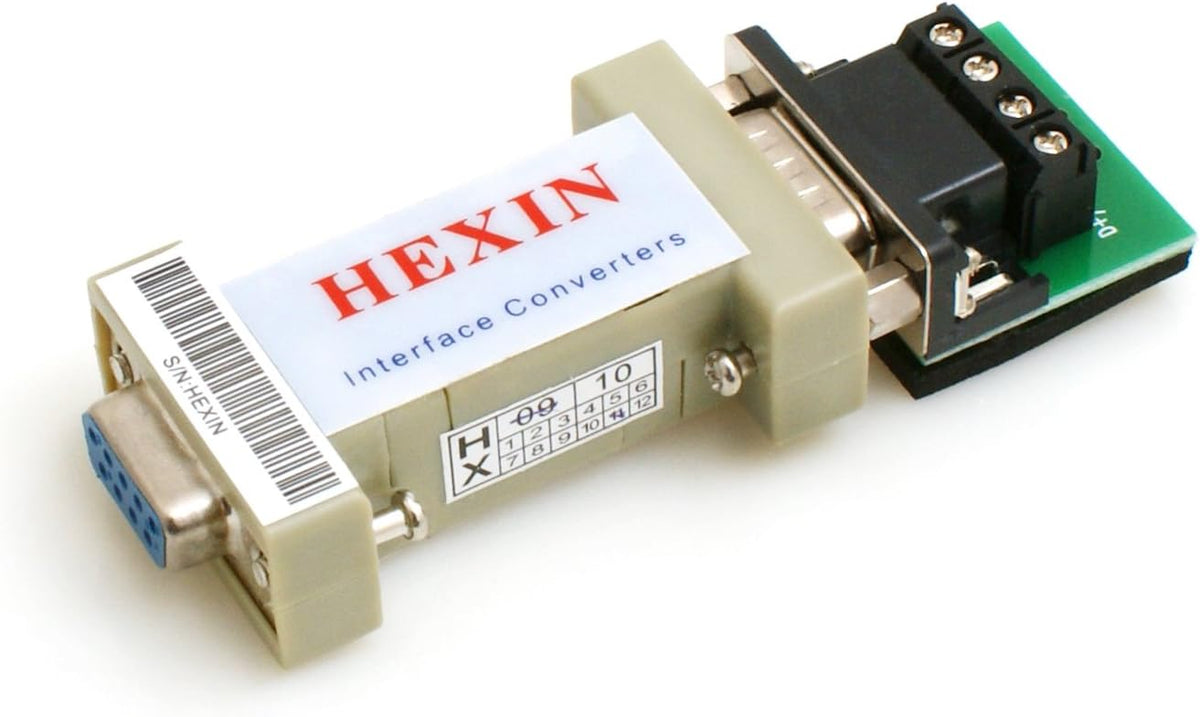

SYSTEM-S RS232 to RS485 Converter Adapter Serial Data Adapter

The SYSTEM-S RS232 to RS485 converter adapter enables the conversion of RS-232 signals to RS-485 signals and offers a variety of functions and features:

• Compatibility : Compatible with RS-232C and RS-485 standards according to EIA / TIA specifications.

• Operating mode : Operates in asynchronous half-duplex mode, which means data can be transmitted in both directions, but not simultaneously.

• Transmission speed : Supports transmission speeds from 300 to 115,200 bps, allowing flexible adaptation to different requirements.

• Transmission distance : The maximum transmission distance is 5 meters at the RS-232 end and 1200 meters at the RS-485 port, which enables efficient signal transmission over long distances.

• Working environment : Operates in a temperature range of -10 to 85 degrees Celsius and a relative humidity of 0% to 95%, ensuring reliable performance in various environments.

• Signals : RS-232 interface supports TXD, RXD, RTS, CTS, DTR, DSR, DCD and GND signals, while RS-485 interface supports Data +, Data -, and GND signals.

The SYSTEM-S RS232 to RS485 converter adapter is a practical solution for communication between devices that use different serial interfaces, providing reliable and flexible data transmission for various applications.

Pin assignment table:
* DB9 socket (RS232C)
- 1 DCD
- 2 RXD
- 3 TXD
- 4 DTR
- 5 GND
- 6 DSR
- 7 RTS
- 8 CTS

* RS485
- 1 Date -
- 2 Date +
- 3 blanks
- 4 blanks
- 5 GND
- 6 + 12V

Scope of delivery:
System-S RS232 to RS485 Converter Adapter Serial Data Adapter
