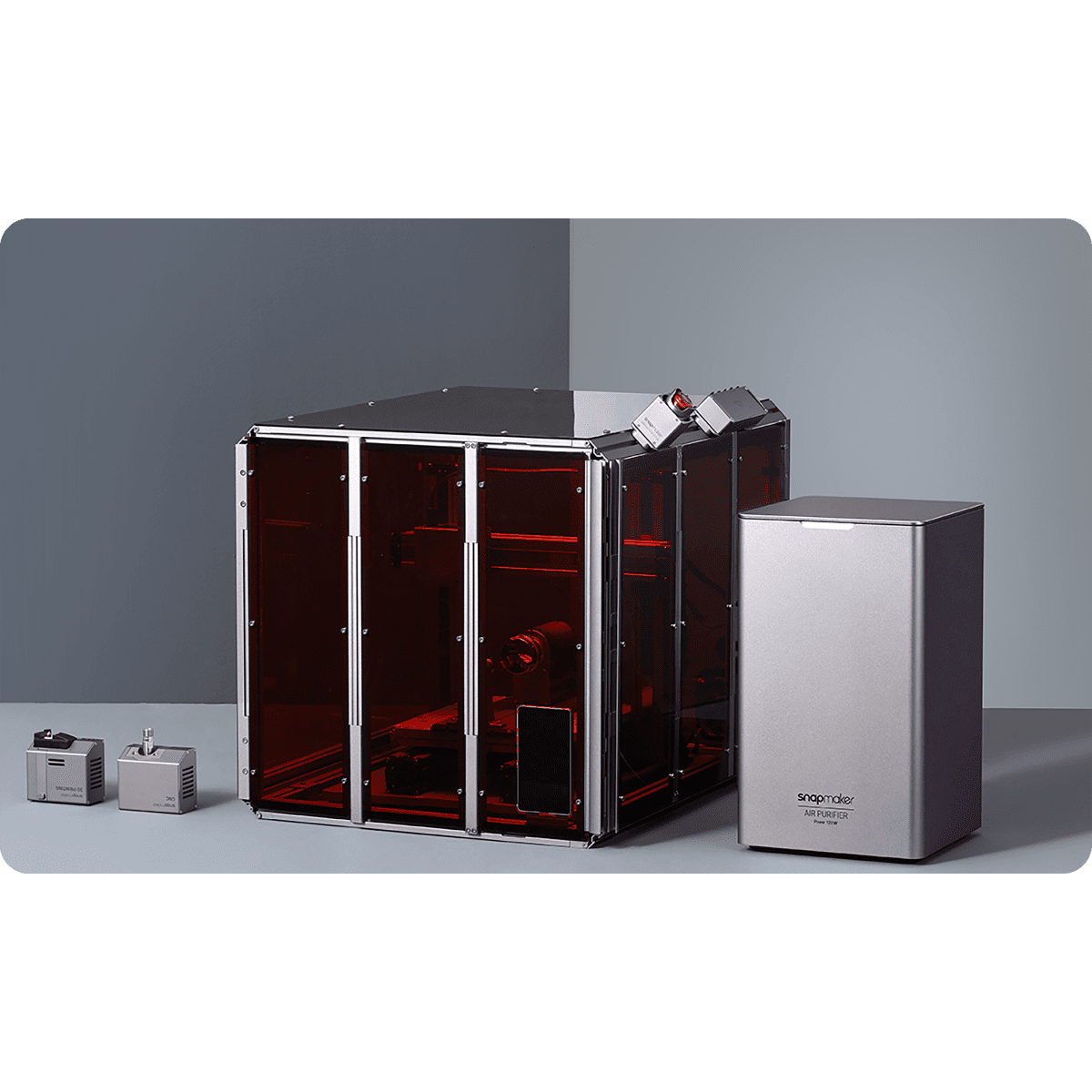

The Snapmaker Air Purifier is designed to ensure air quality in your 3D printing and laser engraving work environment, effectively filtering out harmful particles and volatile organic compounds (VOCs). With a high filtration efficiency of 95.9% for particles as small as 0.3 µm and VOC absorption, the air purifier offers an effective solution to reduce potential health risks. The device is specifically designed for use with the Snapmaker 2.0, Artisan , and Snapmaker Ray models and can only be used with a compatible housing.
Main features:
High filtration performance : Filters 95.9% of particles (PM0.3) and VOCs.

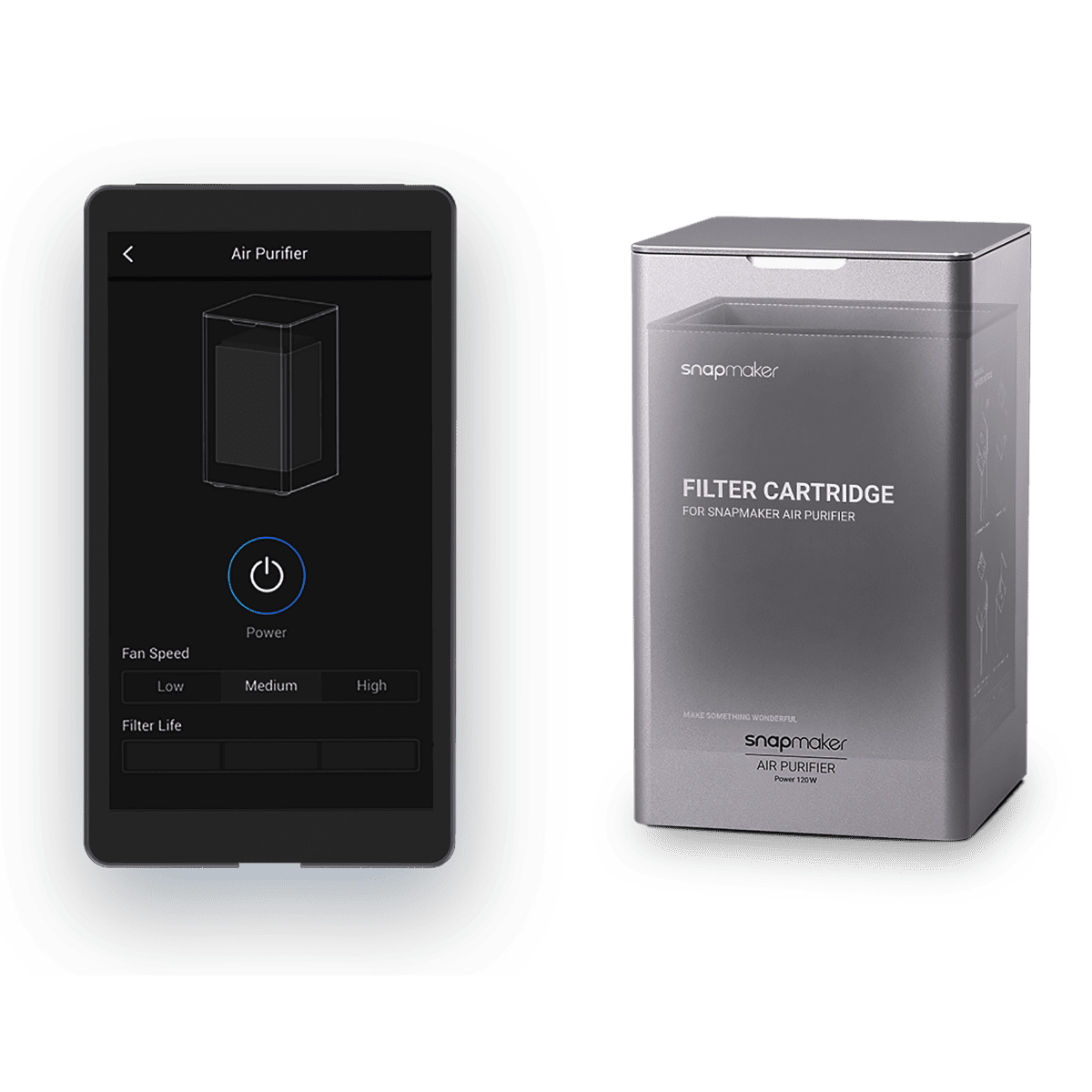

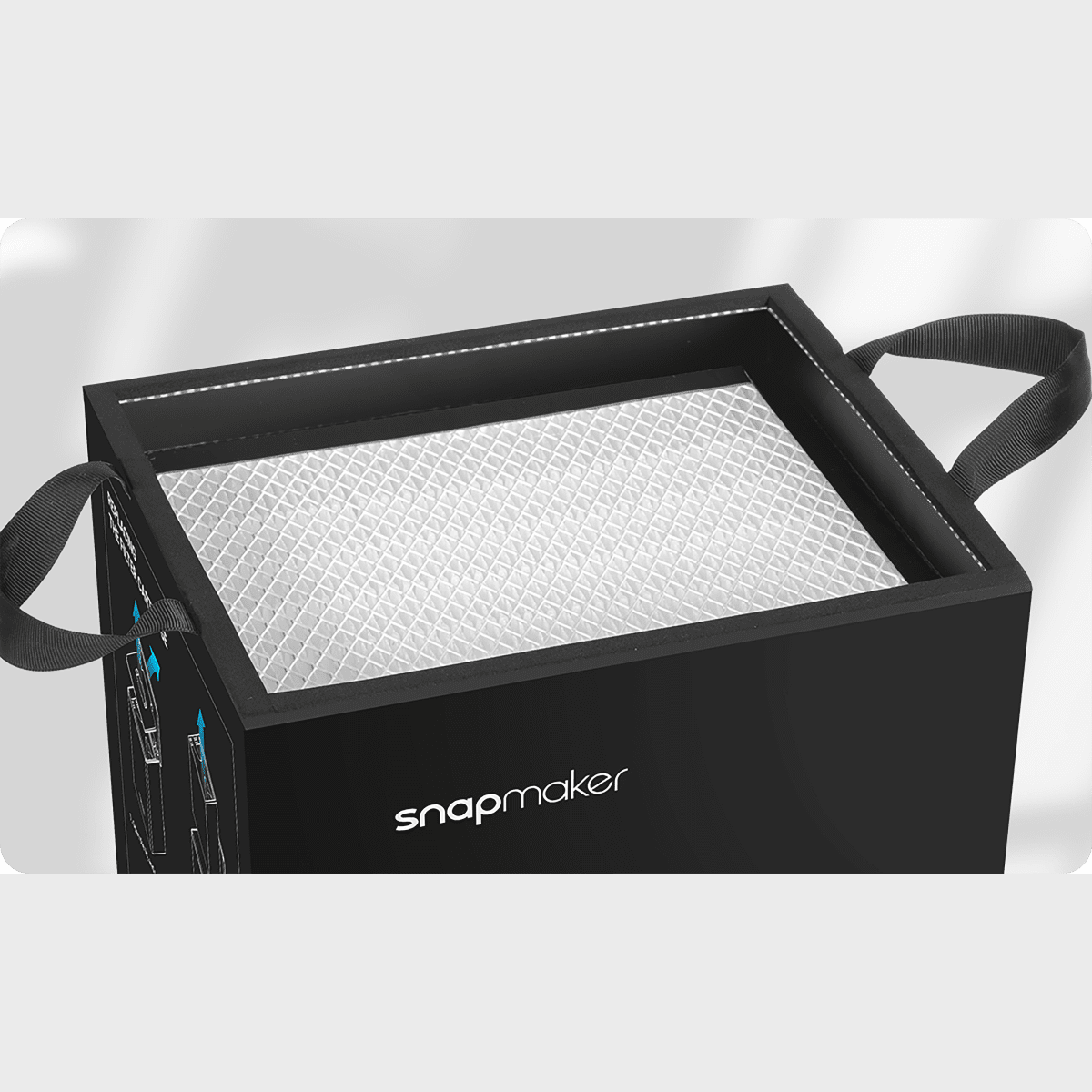

Custom-designed filter cartridge : Five different filter layers, including a G4 filter for larger particles, an F9 filter for finer particles, and an H13 HEPA filter for ultrafine particles.

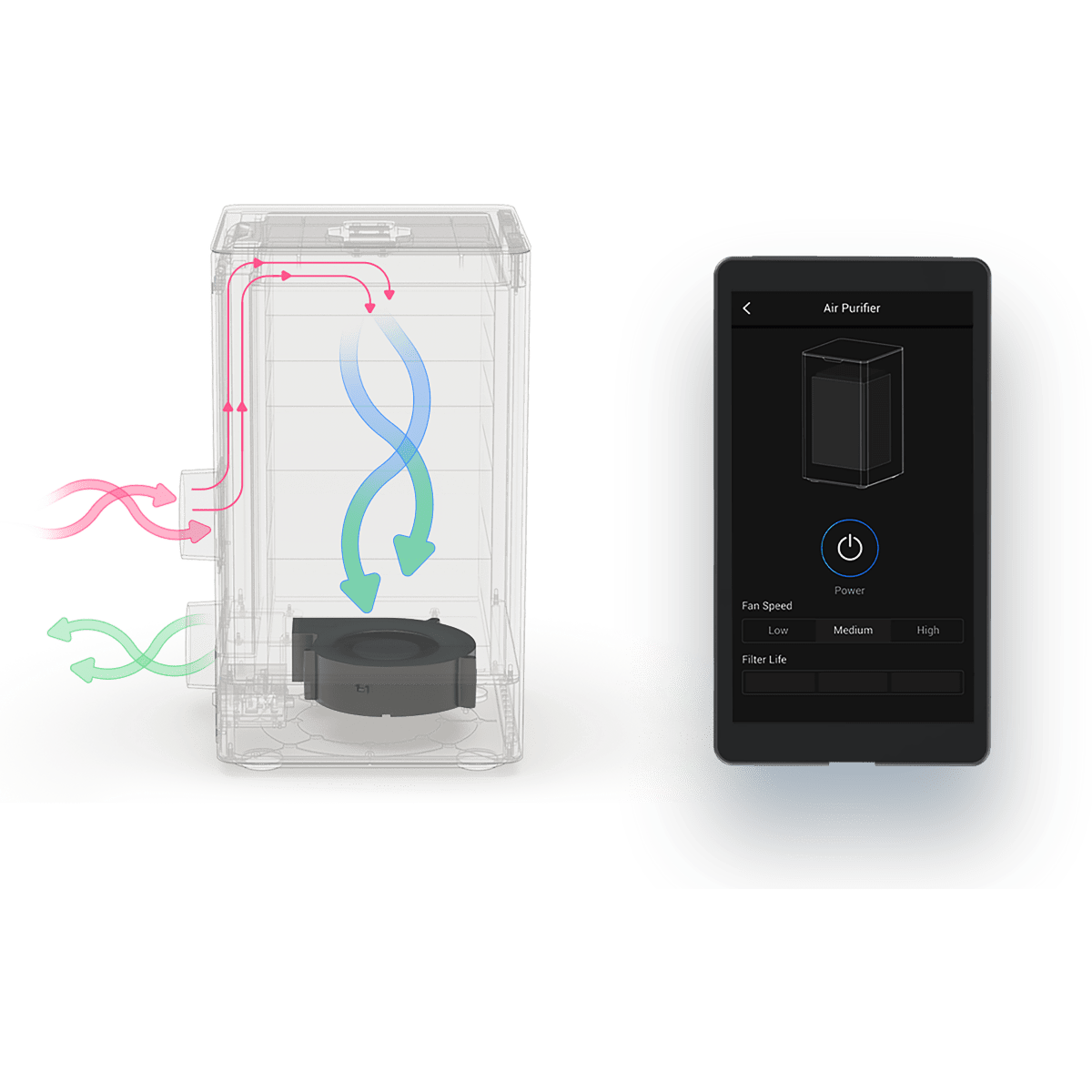

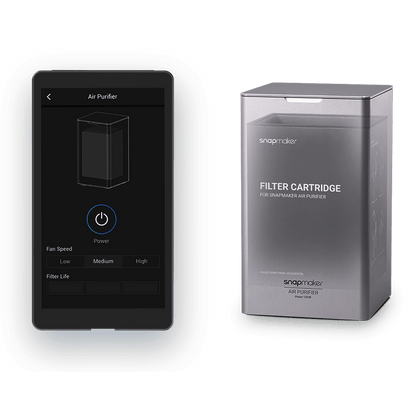

Real-time monitoring : The filter life cycle is continuously monitored and displayed on the Snapmaker's touchscreen.
Convenient control : Touchscreen operation to adjust the fan speed.

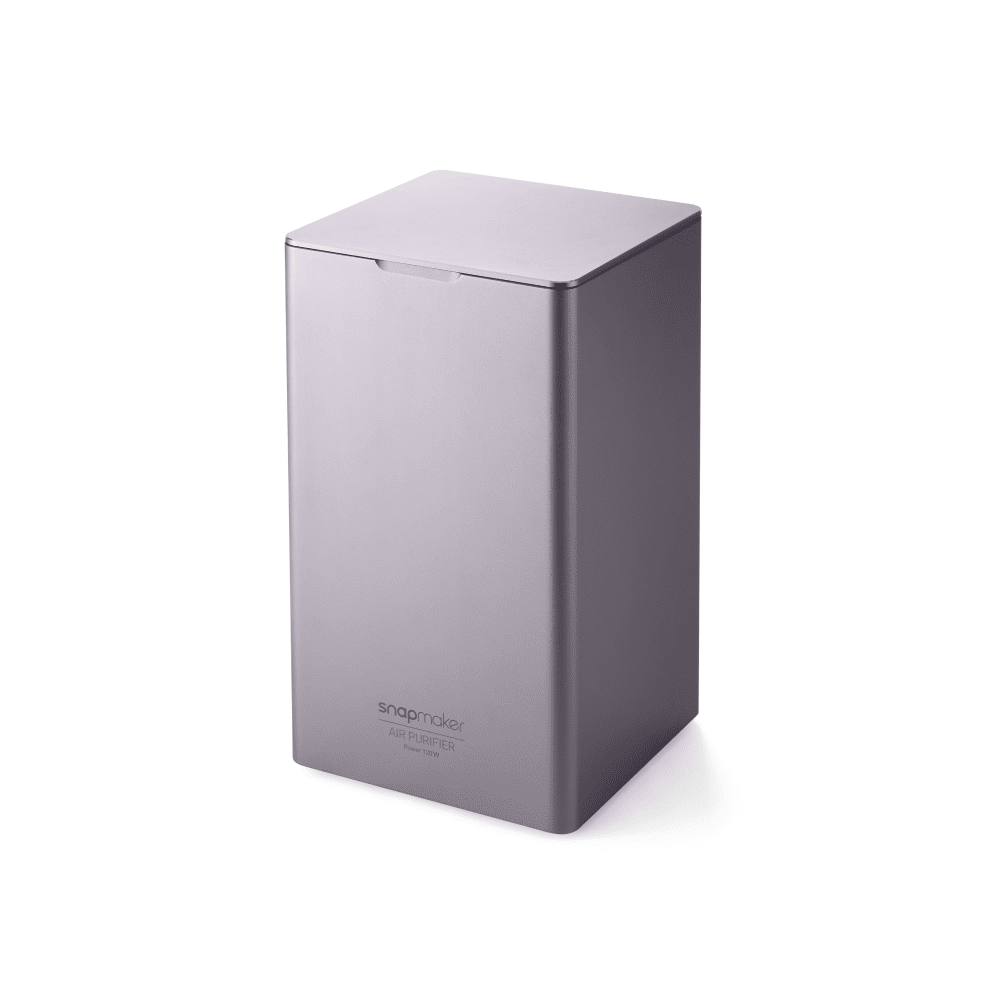

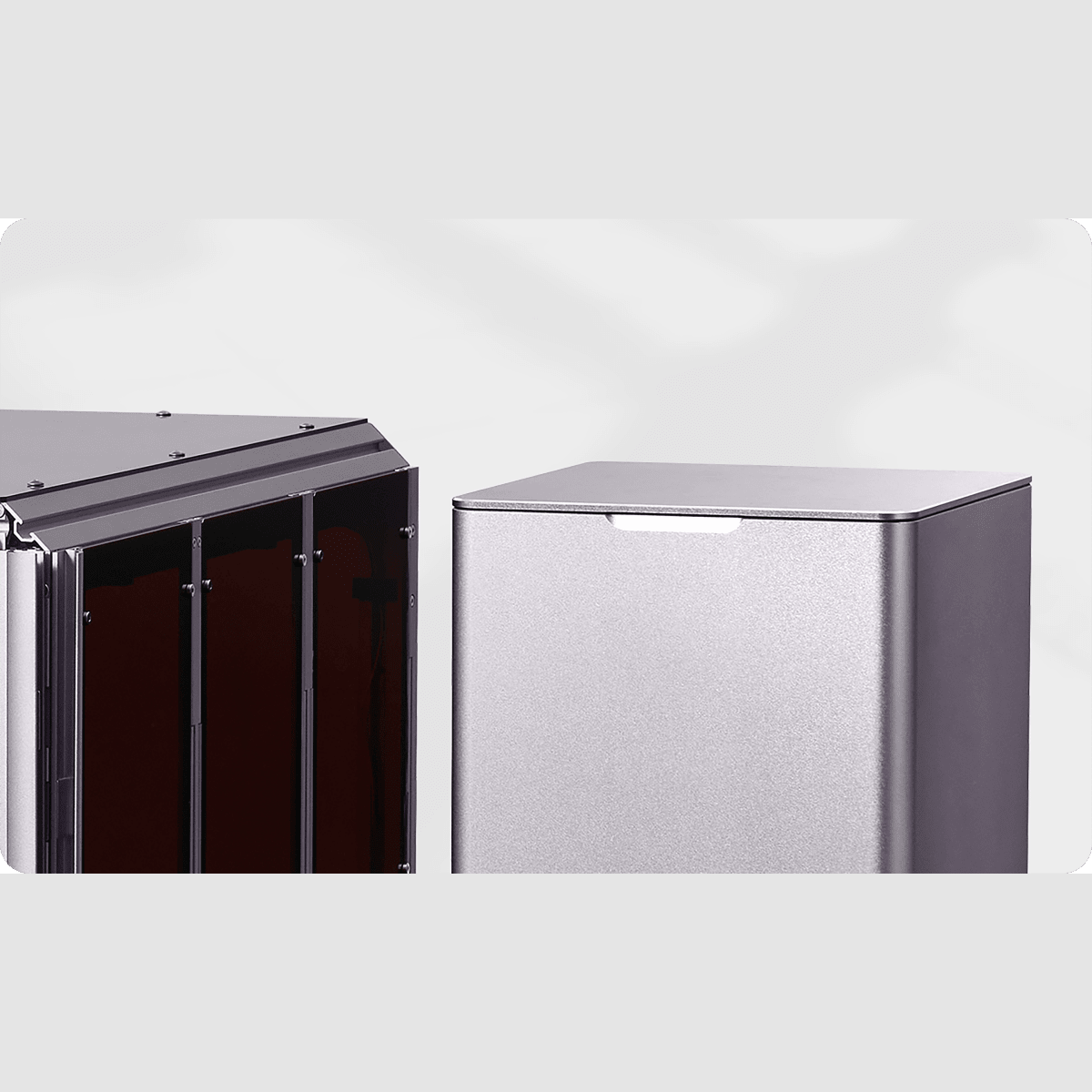

Full metal design : Robust and durable design made of CNC-machined aluminum.

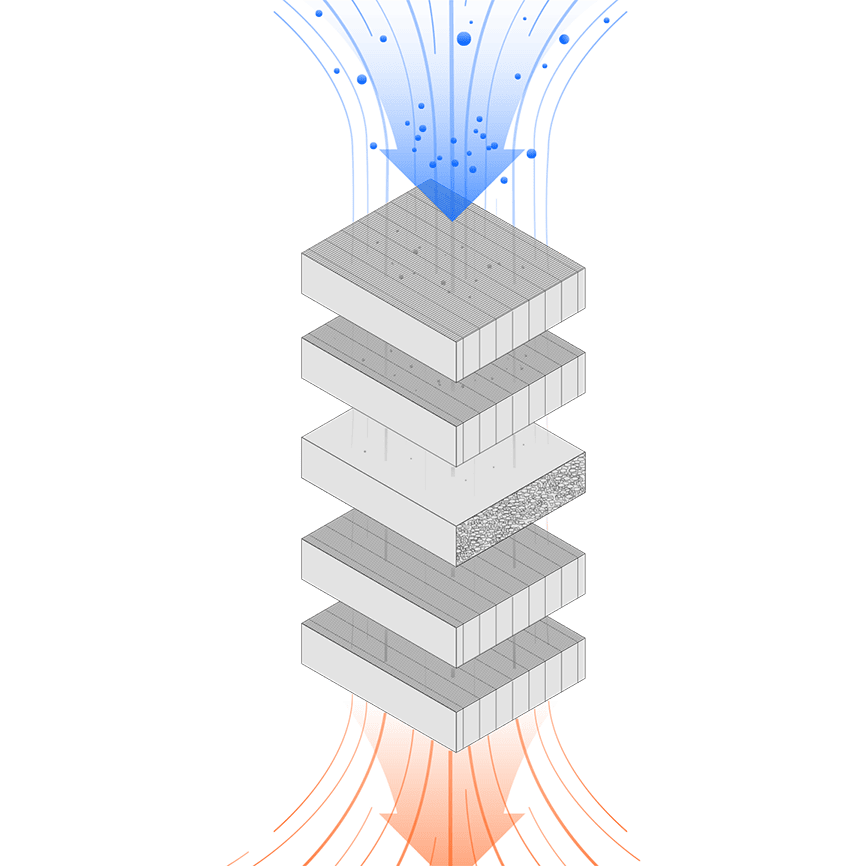

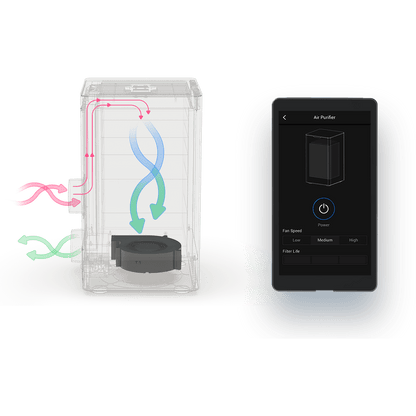

How the filter cartridge works:
G4 filter : For larger particles from 5 µm (PM10, PM5).
F9 filter : For finer particles from 1 µm, filters up to 95% of PM10, PM5 and PM2.5 particles.
Activated carbon filter : Absorbs VOCs and reduces unpleasant odors.
H13 HEPA filter : Captures up to 99.97% of the smallest particles, including PM0.3.
Technical specifications: PropertyDetailsProduct size (W × D × H) 240 × 271 × 420 mm Weight 8.8 kg Air flow rate 150 m³/h Hose diameter 70 mm Filtration rate (0.3-0.5 µm) 95.9 % Noise level Max. 65 dB Voltage AC 100 V – 240 V Rated power 120 W Operating temperature 0°C–35°C Compatibility Snapmaker 2.0, Artisan, Ray Filter cartridge lifespan Approx. 3 months*
*The service life of the filter cartridge varies depending on the frequency of use.
Scope of delivery:
1x Snapmaker air purifier

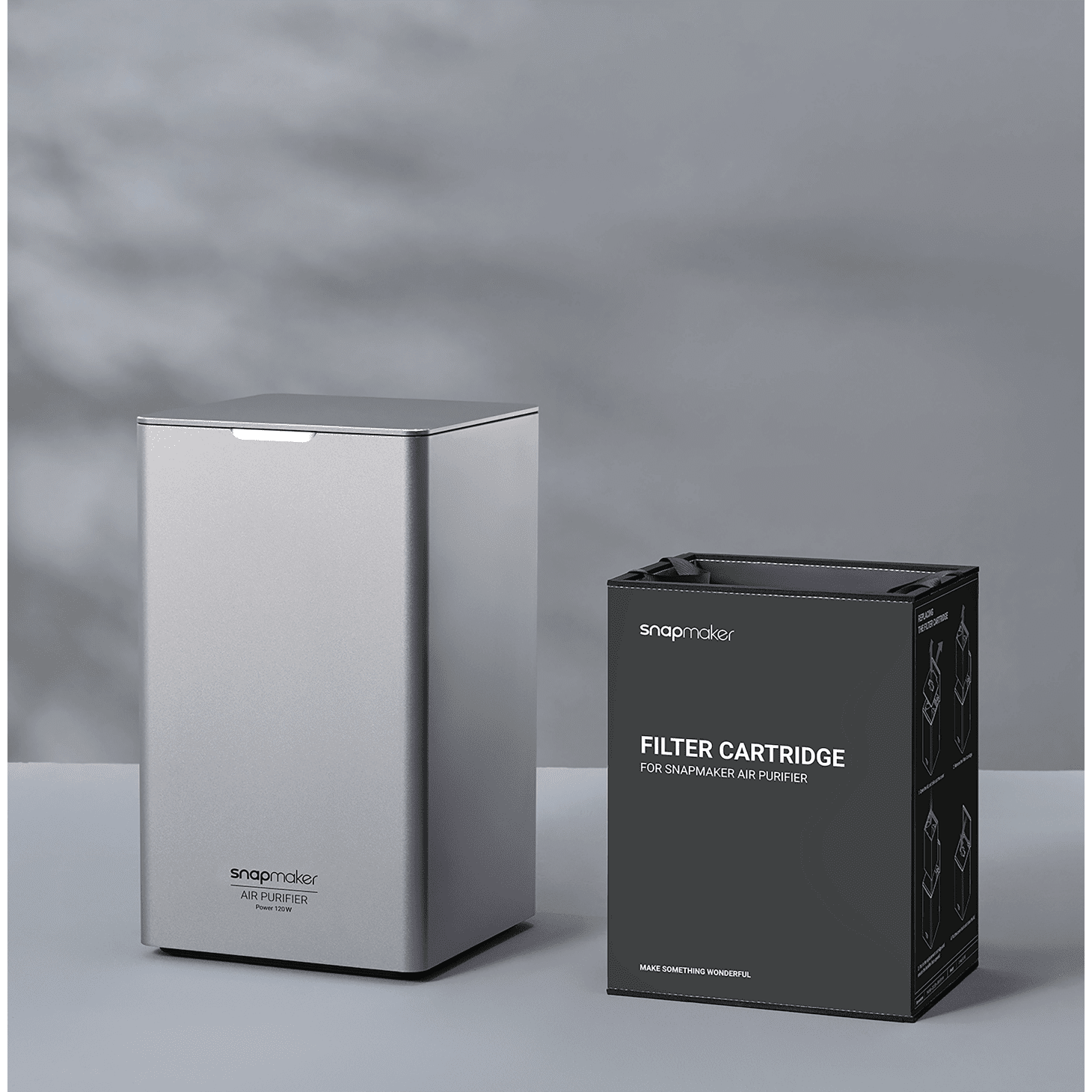

1x filter cartridge

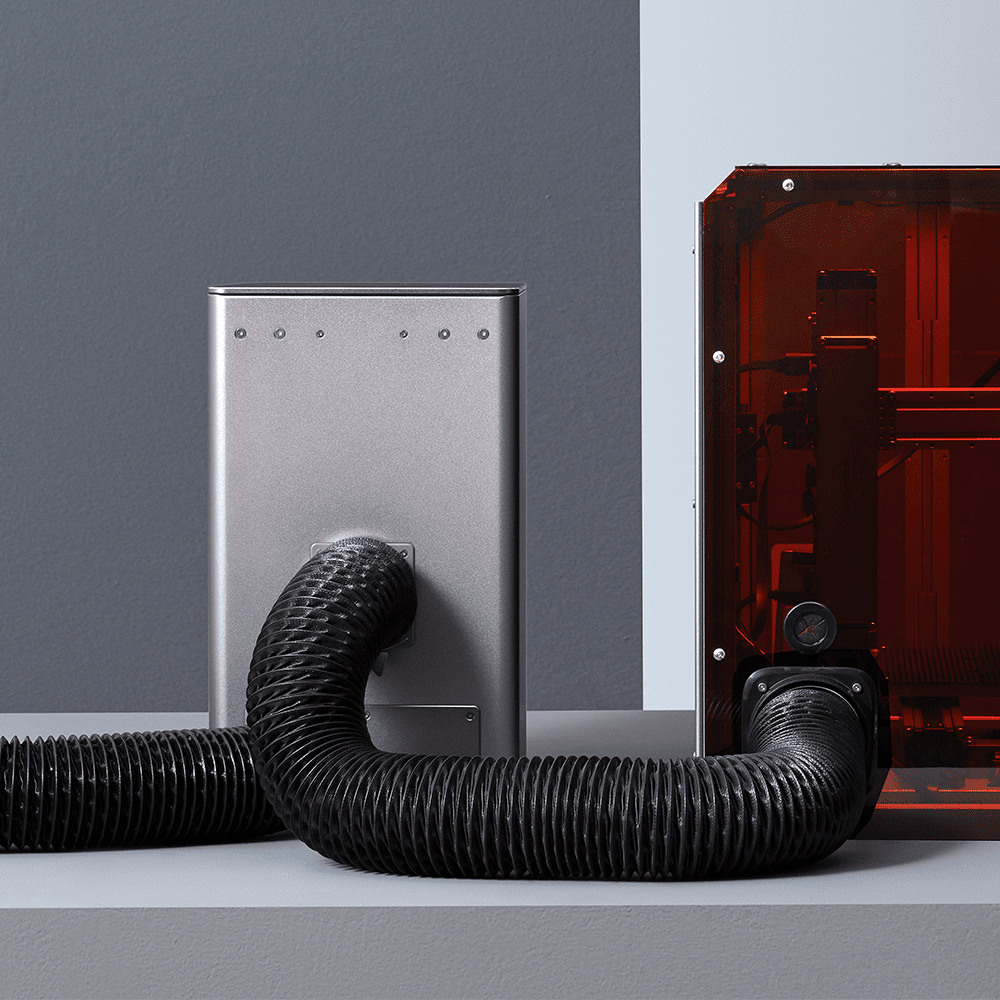

1x hose (including hose clamps)
1x power adapter and connection cable
1x Quick start guide
The Snapmaker air purifier not only provides improved air quality, but also enables you to have a safe and clean working environment, especially for demanding laser and printing projects.
