Turn your Carvera into a professional PCB factory with this PCB manufacturing package
Short description:
This comprehensive PCB manufacturing package transforms your Carvera into a full-fledged PCB production facility. It includes all the tools and materials needed to produce both single- and double-sided PCBs, including solder mask application, laser engraving, and milling tools.
Description:
Applying the solder mask:

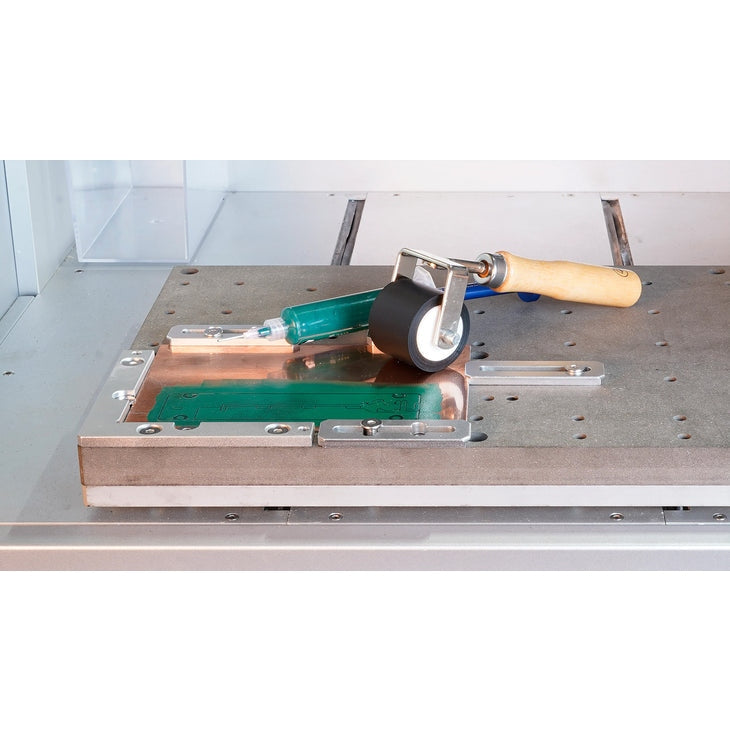

Solder mask not only improves the appearance of your circuit board but also significantly simplifies soldering. With the UV solder mask roller and UV-curable solder mask ink, you can apply the mask precisely and evenly. A special removal tool is included in the kit for removing excess mask.
Laser engraving of the screen printing lettering:
Use Carvera's integrated laser module to engrave silkscreen lettering directly onto the solder mask. This gives your PCBs a professional finish and ensures easy handling.
Manufacturing double-sided printed circuit boards:
The production of double-sided printed circuit boards is significantly simplified by a precise alignment system with double-sided machining pins. This system ensures the exact fit of both PCB sides.
Software solution:

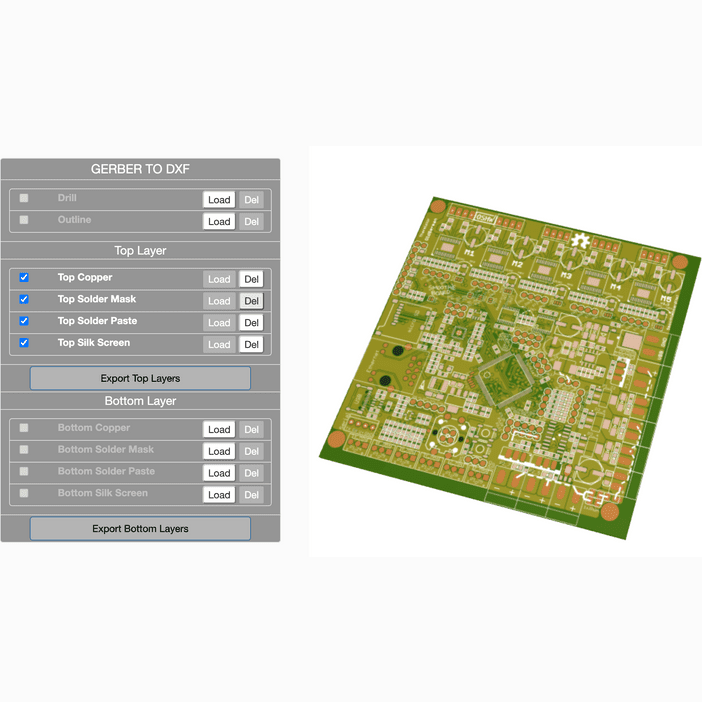

The included software allows you to easily convert Gerber files to CAD files, so you can work seamlessly with VCarve Desktop or other well-known CAM programs without having to learn additional software.

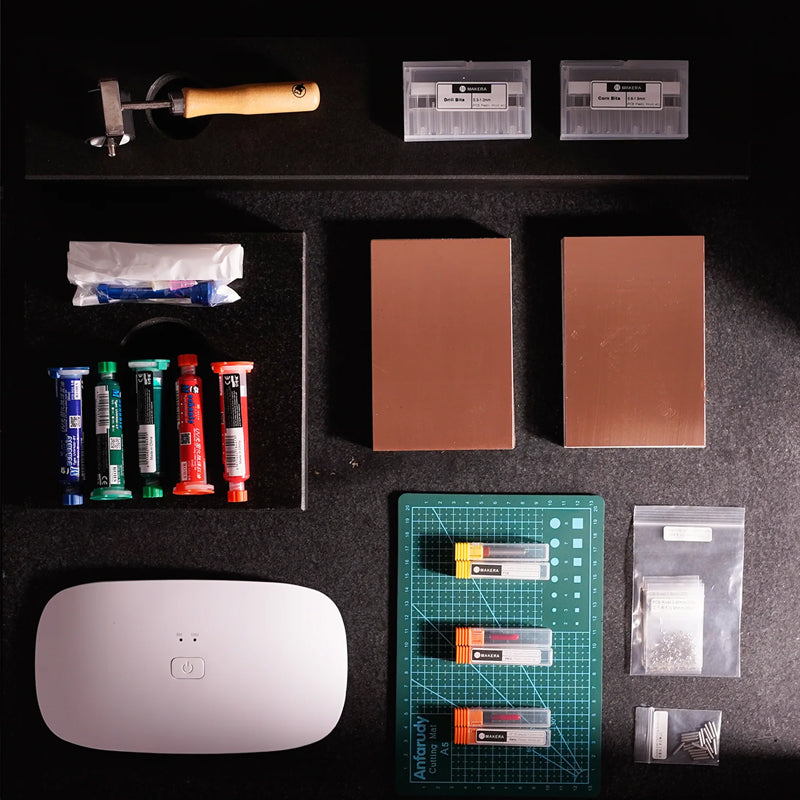

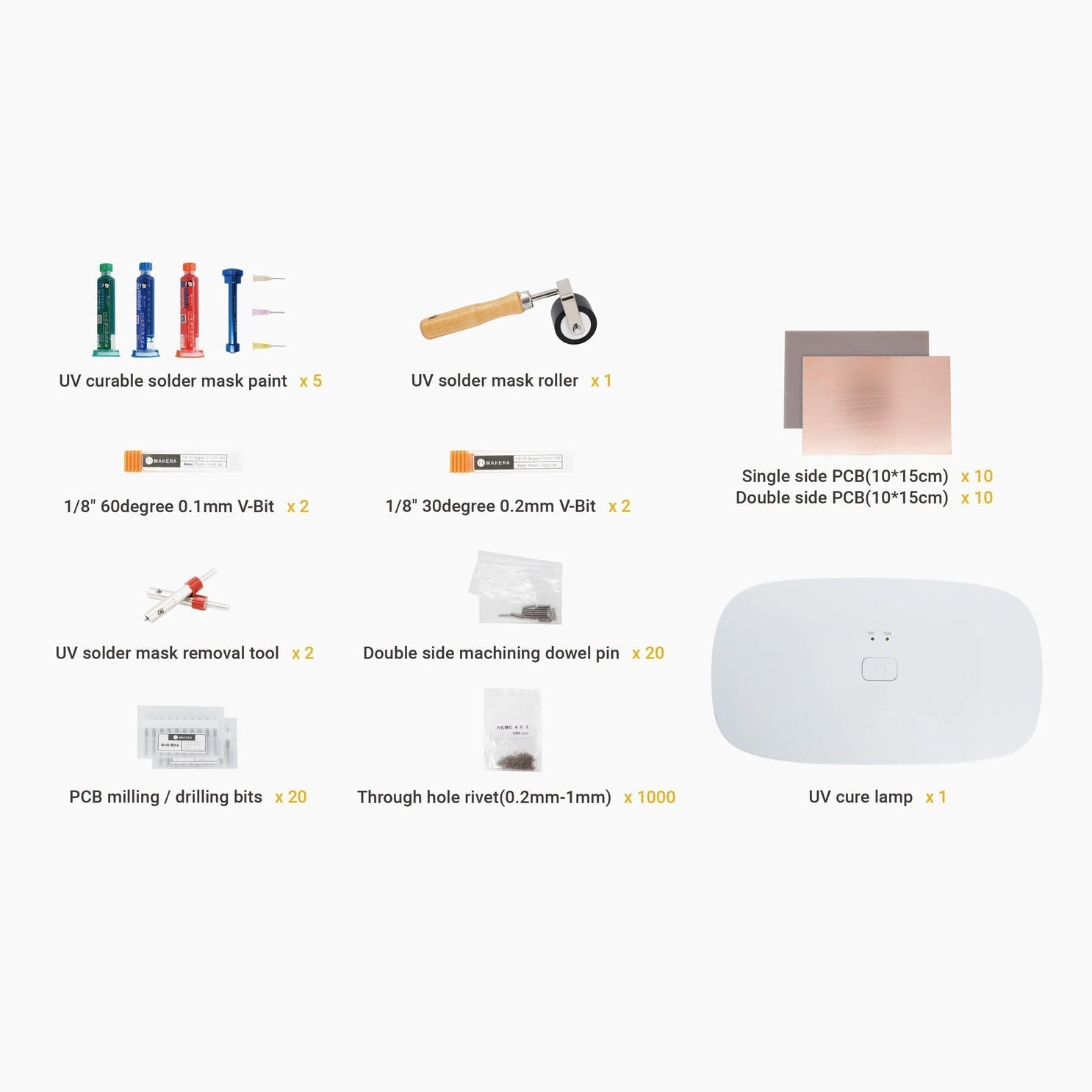

Scope of delivery: Component Quantity Description UV-curable solder mask ink 5 Set of 5 colors for applying the UV-curable solder mask UV solder mask roller 1 roller for evenly applying the solder mask 1/8" V-bit (60 degrees, 0.1mm) 2 milling tools for precise milling and cutting 1/8" V-bit (30 degrees, 0.2mm) 2 fine milling tools for detailed work Single-sided PCB boards (10x15cm) 10 circuit boards for simple PCB designs Double-sided PCB boards (10x15cm) 10 circuit boards for more complex, double-sided designs UV solder mask removal tool 2 tools for precise removal of the solder mask Pins for double-sided processing 20 pins for exact alignment when producing double-sided PCBs Via-hole rivets (0.2mm - 1mm) 1000 rivets for producing Vias on the circuit board UV curing lamp 1 lamp for fast curing of the UV solder mask Milling and drilling bits 20 bits for milling and drilling circuit boards
