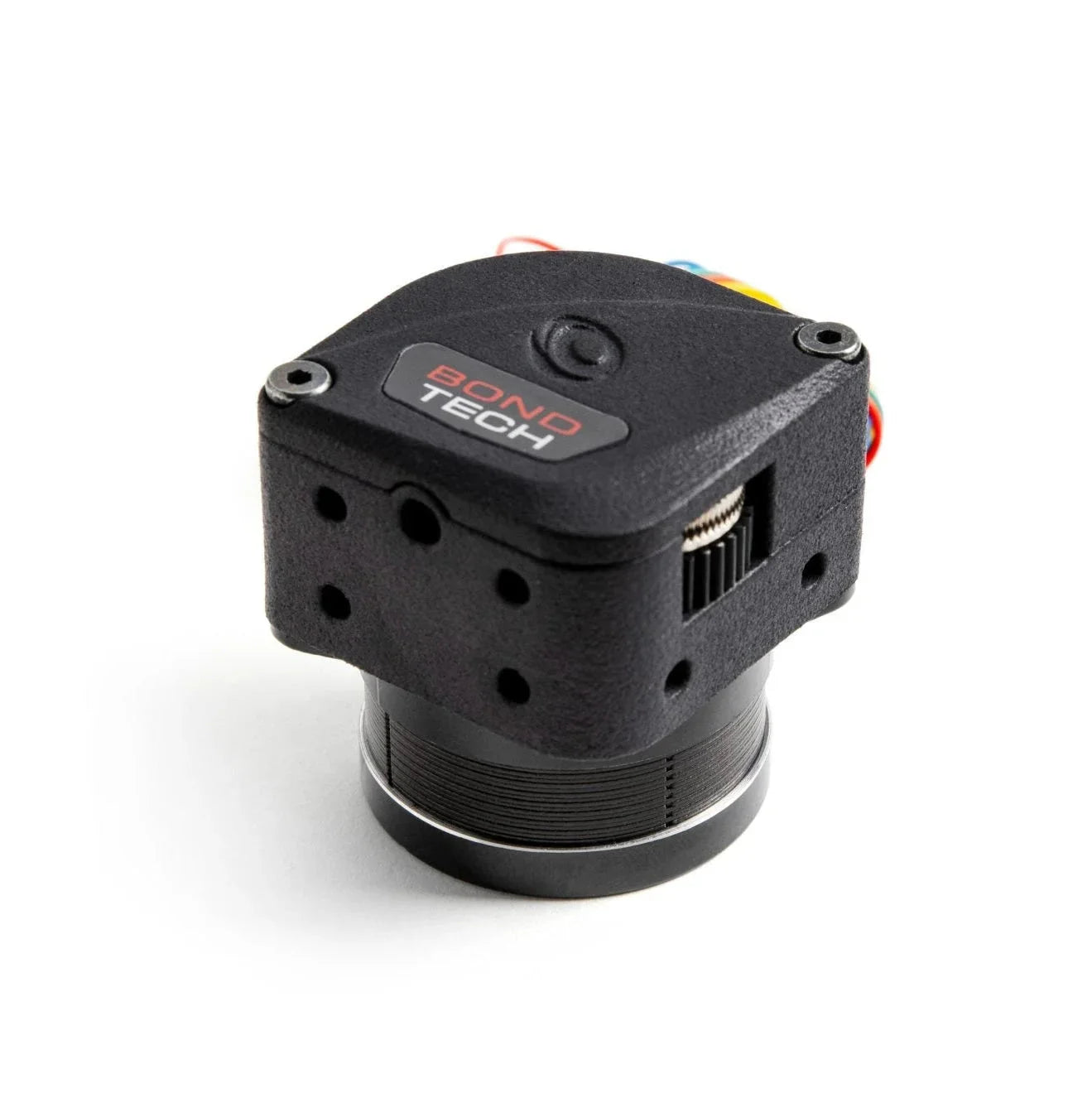

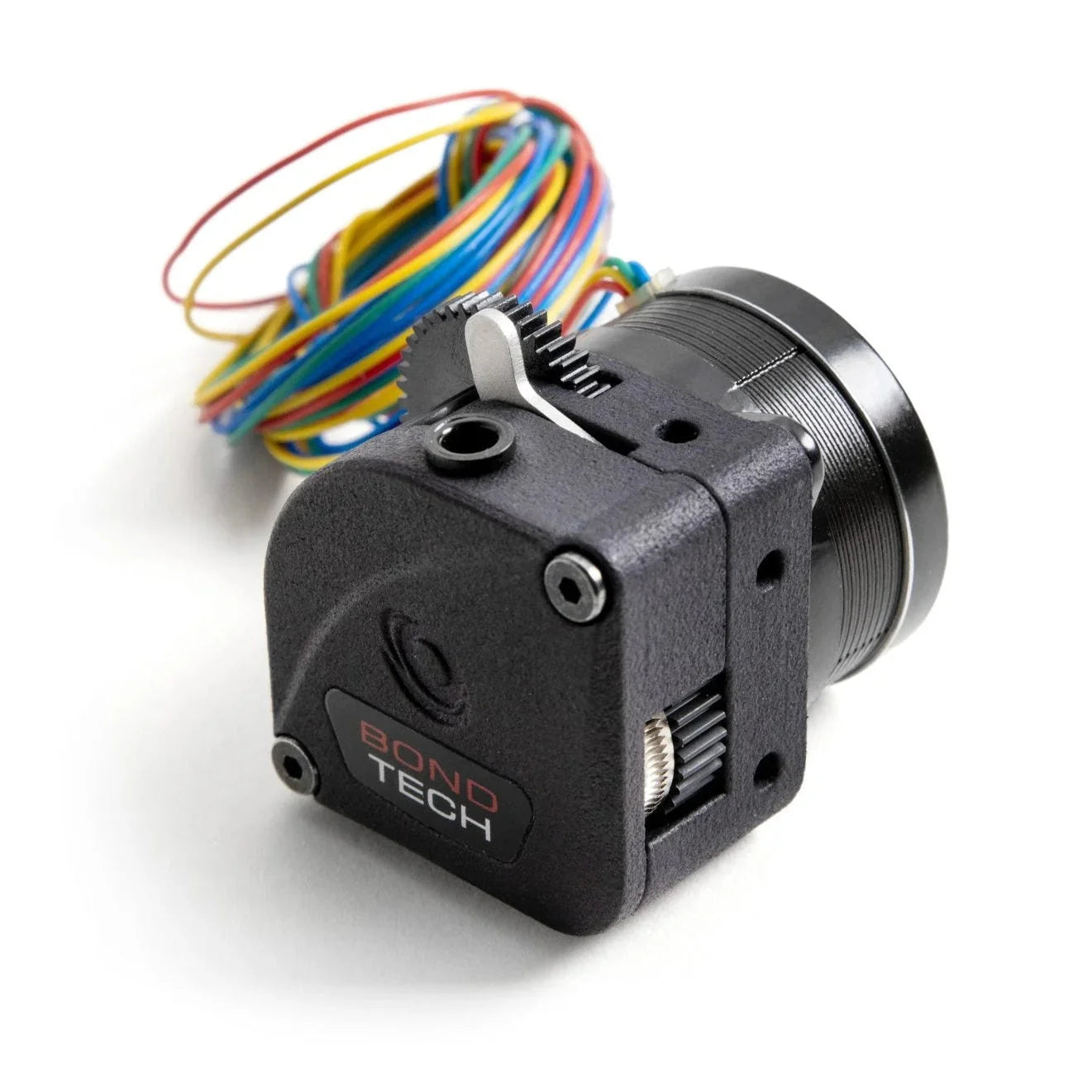

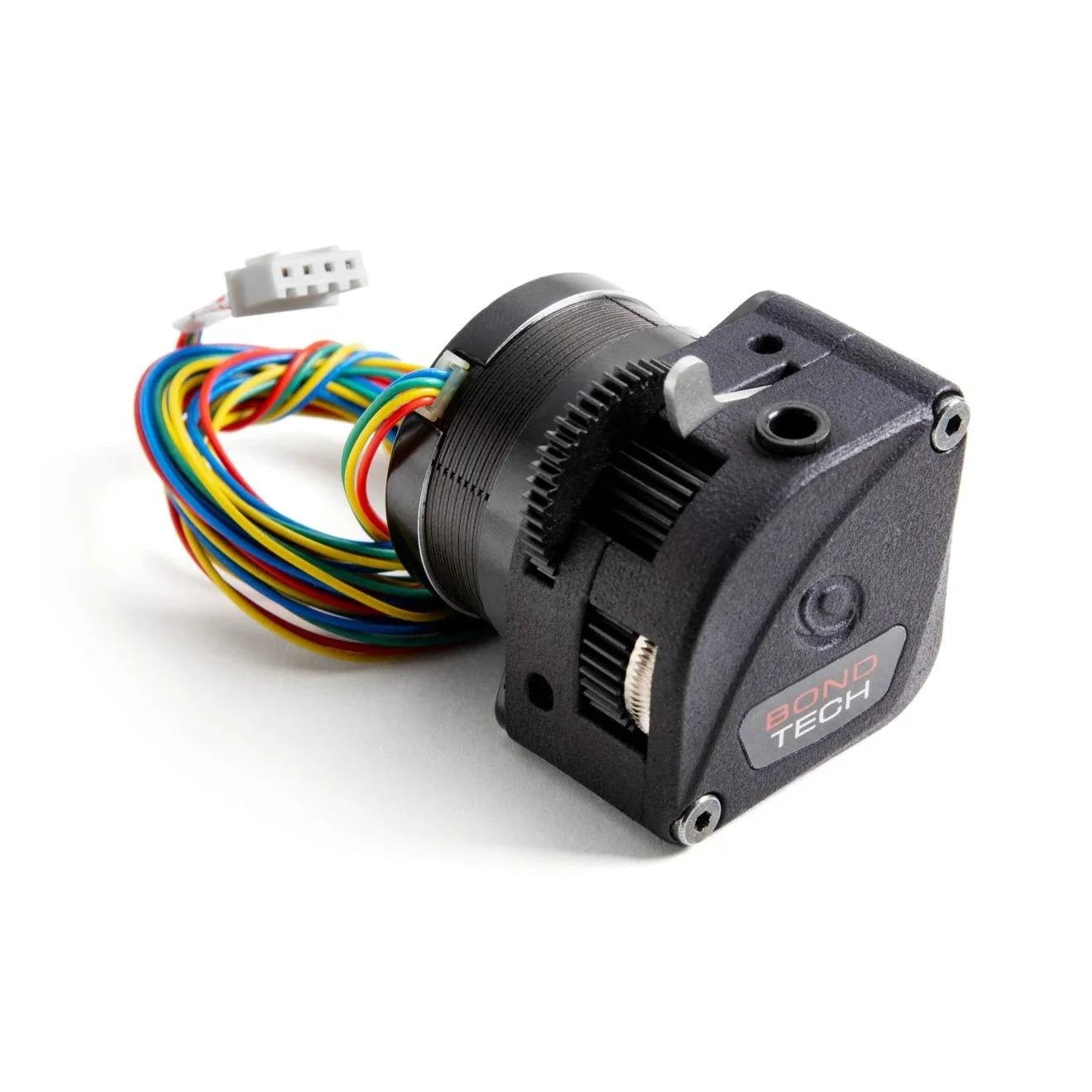

Bondtech LGX® Lite V2 extruder

Bondtech LGX® Lite V2 eXtruder – High-performance filament feeder

The Bondtech LGX® Lite V2 eXtruder is an innovative filament feeding system based on the proven LGX® Large Gears eXtruder technology, utilizing larger drive gears for improved filament control. Equipped with Bondtech's new Dual Drive Technology, this extruder guarantees the highest precision and reliability for 3D printing applications. It is specifically designed for 1.75 mm filament and offers a compact, lightweight design with no mounting plate between the motor and extruder.

Features:

• Larger drive wheels : Increased grip for more precise filament feeding.
• Filament preload lever : Ensures repeatable and consistent results.
• Drive wheel maintenance window : Easy cleaning and maintenance of the drive wheels.
• Compact, lightweight design : Optimized filament path for maximum performance and compatibility.
• Multiple mounting patterns : Flexible use thanks to various mounting options.
• Compatible with Nema14 round stepper motors : Suitable for 20mm round pancake motors.
• PA12 GF Housing : 3D printed from polyamide 12 with glass filling for increased strength and temperature resistance.
• Sustainable design : Reduced use of chemical dyes, the case has a protective wax coating to protect it from moisture and grease.

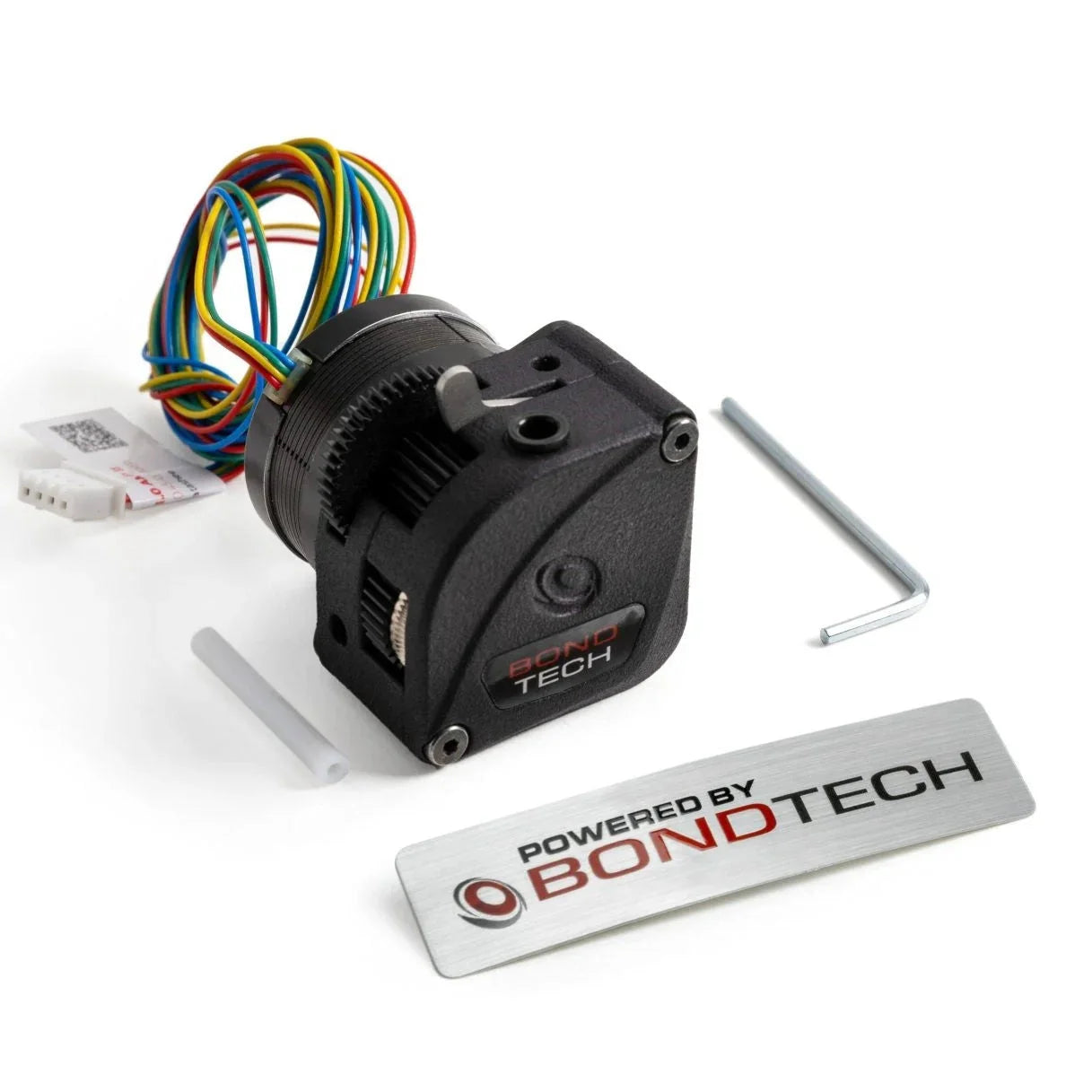

Scope of delivery:

• 1x LGX® Lite V2 Feeder
• 1x LDO Nema14 round stepper motor (20 mm pancake)
• 1x 1 m JST-XH 4-pin connection cable
• 1x 2 mm Allen key
• 1x Bondtech sticker
• Additional accessories :
  • 1x Push-Fit clamp
  • 1x 30 mm PTFE tube for the PTFE tube adapter
  • 8x M3 square nuts to reinforce the mounting holes

Why choose the Bondtech LGX® Lite V2:

• Excellent filament control : The larger drive wheels ensure precise feeding and better filament adhesion.
• Easy maintenance : Thanks to the maintenance windows, cleaning is quick and easy.
• Lightweight and compact : Ideal for various 3D printers, the LGX® Lite V2 offers flexibility and compatibility.
• Sustainable and environmentally friendly : With reduced use of chemical dyes and a robust, protective wax coating system to extend lifespan.
